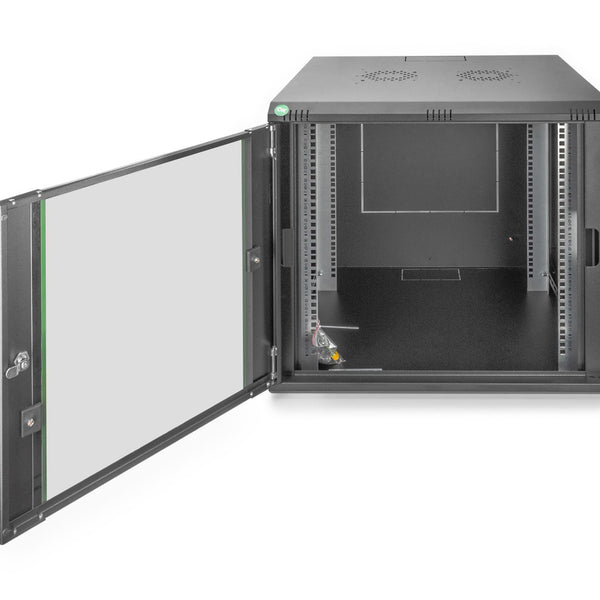

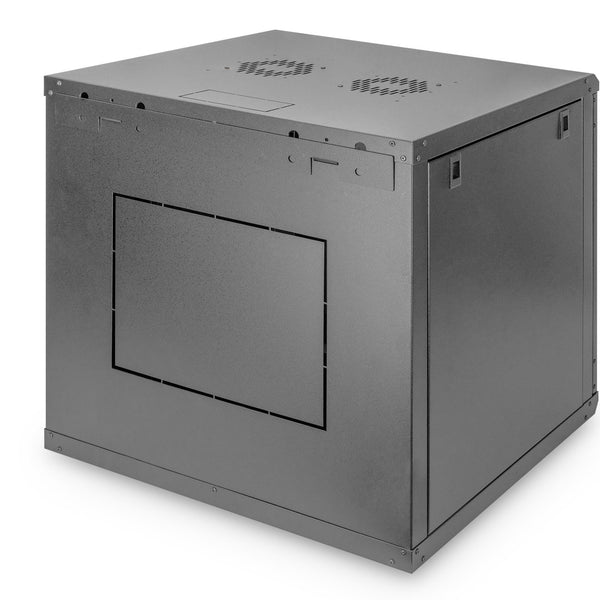

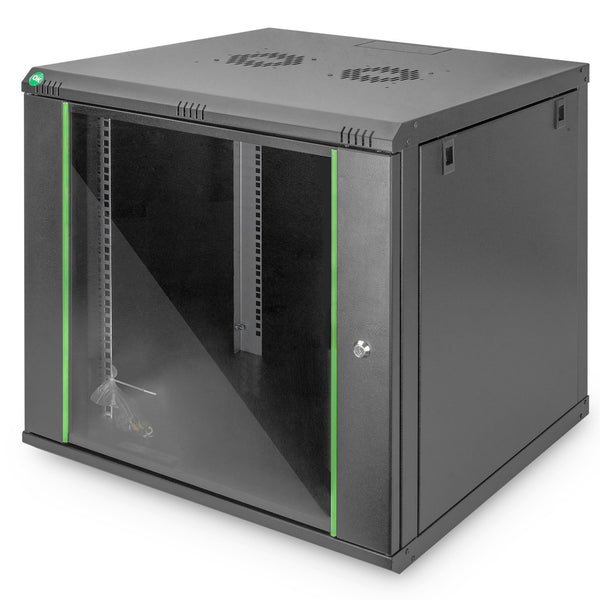

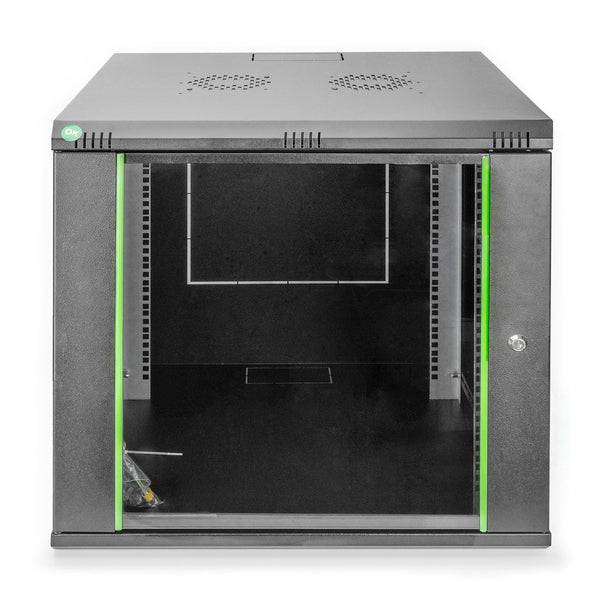

9U wandkast 600x600x478 mm, kleur zwart (RAL 9005)

Name: 9U wandkast 600x600x478 mm, kleur zwart (RAL 9005)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-09U-6/6-EC-SW
Price: 200.8 EUR
Availability: InStock

Artikelnr.: DN-19-09U-6/6-EC-SW

TECHNICAL DETAILS

Safety class rating IP20
Lockable safety-glass door with steel frame
210° door opening angle
1-point-locking-mechanism on the front door
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
Cable entry on the rear side, roof and base (pre-punched break-outs)
Roof is prepared for fan units (punched out entries)
Ventilation slots for active and passive ventilation and exhausting
4 earthing points (base, side panel and front door) with protection cap
Equipment mounting depth min.-max.: 320 - 450 mm
Cabinet type: Wall mounting cabinet
Color: black, RAL 9005
Depth: 600 mm
Front door: Glass door, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 9
Width: 600 mm
IP protection class: IP20
Mounted: yes
