GHMT certified CAT 8.1, S/FTP (PiMF), Network Cable yellow, 50 M

Sale

Product form

GHMT certified CAT 8.1, S/FTP (PiMF), Network Cable yellow, 50 M

GHMT certified CAT 8.1, S/FTP (PiMF), Network Cable yellow, 50 M LAN cable for setting up a CAT 8.1 channel... Read more

Delivered tomorrow

€241,99€199,99 -15% -15%
(€205,69 Incl. VAT)€169,99

Lowest price guarantee!

Shipping from just € 5,95

Pay afterwards after 14 days

2 year warranty on your purchase

SKU: 861128

Need a larger quantity?

Request quote

Can we help you with anything?

Do you have any questions or need advice? We are happy to help you!

Contact us!

Ask your question

Additional products

CAT8.1 Keystone RJ45 STP Toolless GHMT-certified
€9,09€7,51 -15% -15%
(€7,72 Incl. VAT)€6,38

Connection cable length: 50 M
Color: Yellow
Inner conductor material: Full Copper
max. bandwidth: 2000 MHz
Screening per Pair: Aluminium Foil
Outer sheath: LSZH
Category: Cat8
Diameter Ø: 8.3 mm
Cable: 4 Pair (4x2) AWG 22
Overall Screening: Metal Braid
Type Cable: S/FTP
Connection: 40 GBit
Packaging unit: 1 piece
Conductors: Solid
CPR Fire Class: Dca
Suitable for POE: Yes
Conformity: Conformity
Diameter of insulated conductor: Diameter of insulated conductor
Show more less

GHMT certified CAT 8.1, S/FTP (PiMF), Network Cable yellow, 50 M

LAN cable for setting up a CAT 8.1 channel
GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
Suitable for 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and backward compatible with 10BASE-T, 100BASE-TX, 1000BASE-T
With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of CAT 6A cables

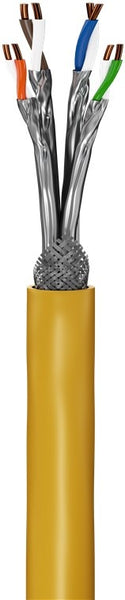

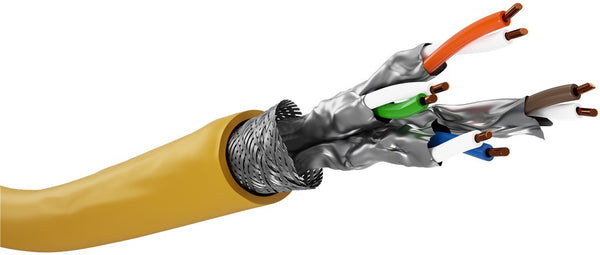

Equipped with wire pairs with an aluminium foil screen (PiMF) and an S/FTP overall screen made of aluminium braid for a loss-free signal transmission
Low-smoke and halogen-free network cable for structured indoor installation
The network cable complies with the Construction Products Regulation (BauPVO/CPR) and the Dca fire protection class.

Technical specifications

Cable

Specification: CAT 8.1
Cable type: Cat 8.1 raw cable
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
AWG: 22/1 (solid)
Inner conductor material: CU (copper)
Material cable sheath: LSZH
Cable sheath diameter (approx.): 8.3 mm
LSZH compliant: yes
Fire class (CPR): Dca
Cable length: 50 m

Signal transmission

max. bandwidth: 2000 MHz
Impedance: 100 Ω

General

Outer sheath material: LSZH
Color: yellow
Packaging type: Cable Reel-spool
