SKU: K861129
Additional products
Weight: kg
Height: 21.4 mm
Width: 15.8mm
Lenght: 37.8 mm
AWG: 22-26
Colour: Colour

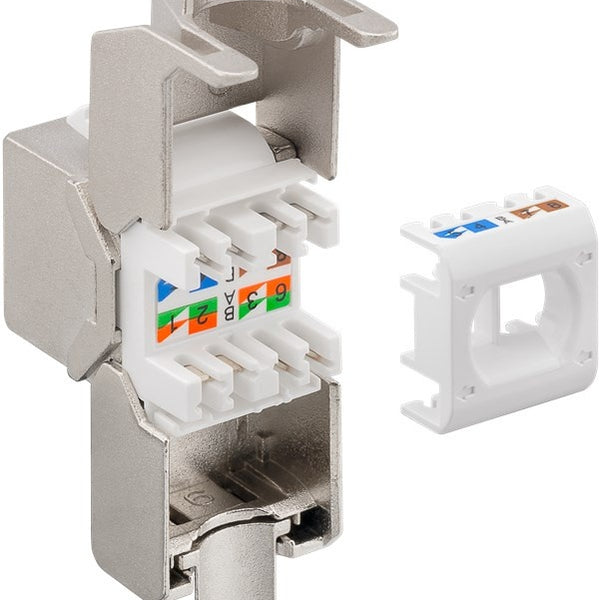

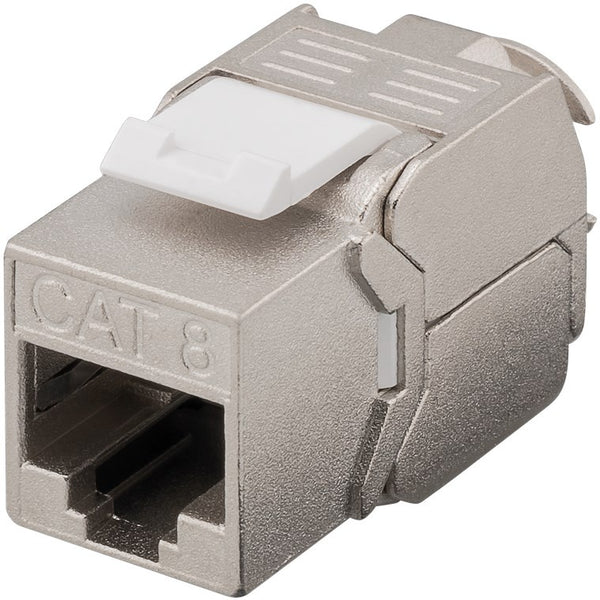

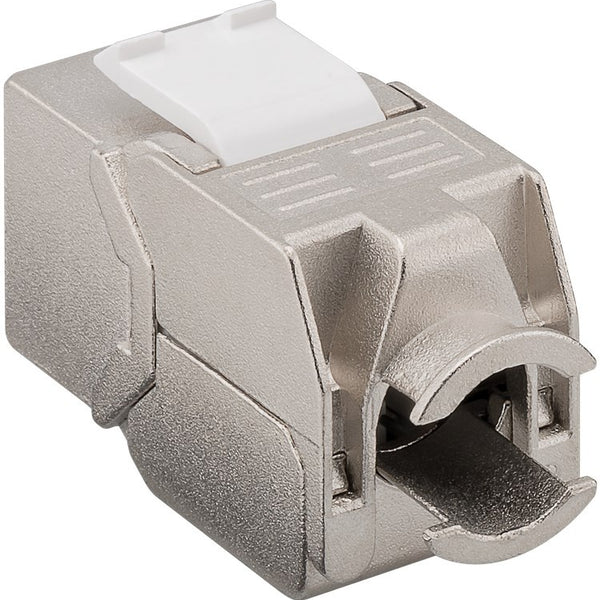

Ideally suited as a connector for setting up a CAT 8.1 channel
GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
For round cables with 5.0-8.5 mm diameter and a solid conductor (AWG 22/1 - 26/1) or stranded conductor (AWG 22/7 - 26/7)
For quick, tool-free mounting in patch panels, network sockets or housings
The RJ45 coupler is suitable for Power over Ethernet (PoE++, 4PPoE, Ultra PoE) according to IEEE802.3bt and supports 25GBase-T and 40GBase-T (downward compatible).
The RJ45 Keystone is suitable for top-of-rack and middle-of-row architectures in data centres.
The 3 μin gold-plated contacts and STP screen of the zinc die-cast housing ensure durability and perfect signal transmission.
