Ultra-flexible thin CAT 6A patch cable U/FTP 7.5M white

Super flexible CAT 6A Patch Cable, Slim, White (U/FTP)

This ultra-thin CAT 6A network cable with extra-short connectors is ideal for connecting equipment in server cabinets and patch panels. Its slimmer design creates significantly more space, allowing for better airflow and less heat buildup than traditional cabling. Furthermore, the soft TPE outer casing and thin copper conductors provide exceptional flexibility and efficiency, making this cable the perfect partner for your network.

Key Features:

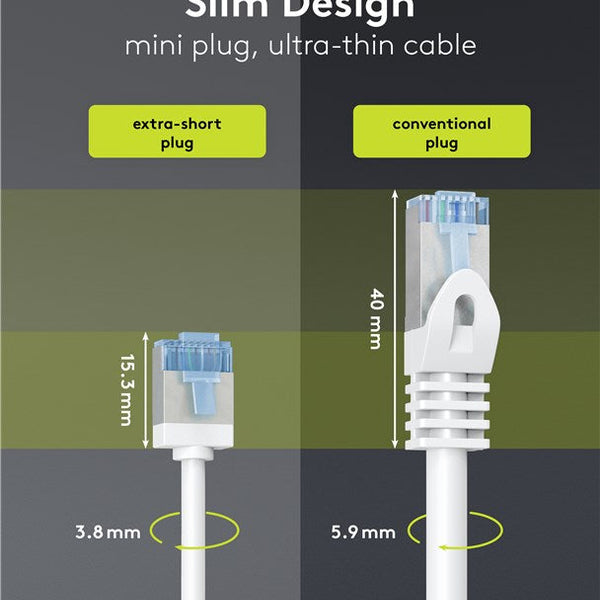

• Super thin : The LAN cable is extra thin and has compact RJ45 connectors. This reduces cable bulk in your server cabinet or patch panel and improves airflow.
• Safe and flexible : The cable has no individual pair shielding and features a halogen-free TPE outer casing that emits minimal smoke in the event of a fire (LSZH). This ensures a very small bending radius and high flexibility.

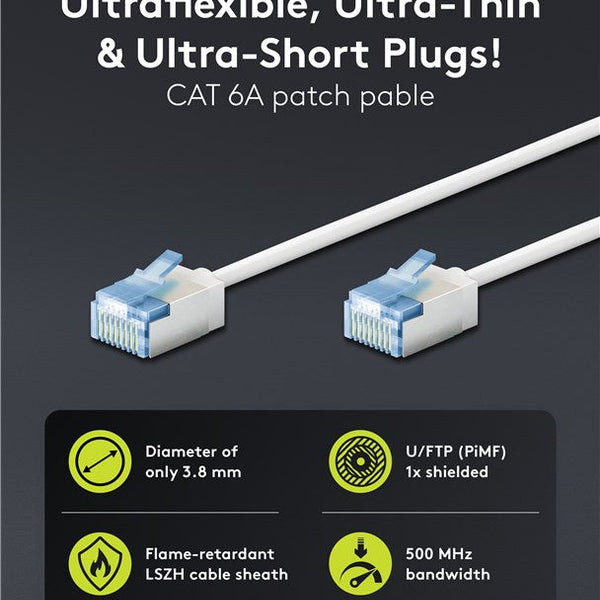

• Compact and powerful : With an AWG of 32 and an outer diameter of only 3.8 mm, the cable is ultra-thin, but just as powerful as a standard CAT cable.
• Fast Connections : This CAT 6A network cable is perfect for fast network connections, such as 10 Gigabit Ethernet (10GBASE-T) and other speeds (100BASE-TX, 1000BASE-T, and 10/100/1000/10000 Mbit/s).
• PoE Capable : The RJ45 cable is suitable for Power over Ethernet (PoE and PoE+) and has been tested for CAT 6A performance.
• Optimal performance : The high-quality copper conductors and gold-plated plug contacts ensure low signal resistance and prevent corrosion.
• Durable : The compact kink protection effectively prevents cable breakage and ensures a long service life of the Ethernet cable.
• Environmentally friendly packaging : Products are only provided with a paper label; plastic bags and plastic cable ties are not used.

Compliance with standards:

The cable complies with the following international standards:

• IEC 60332-1 : Flame retardant
• IEC 61034 : Low smoke development
• IEC 60754-2 : Halogen-free
• ISO 11801 : Performance (Fluke channel test: channel + PoE)

Technical specifications:

Connections:

• Wiring : EIA/TIA-568 B
• Contact material : Gold plated
• Strain relief : On both sides
• Connection type : RJ45 male (8P8C) on both sides
• Buckle protection : On both sides

Cable:

• Specification : CAT 6A

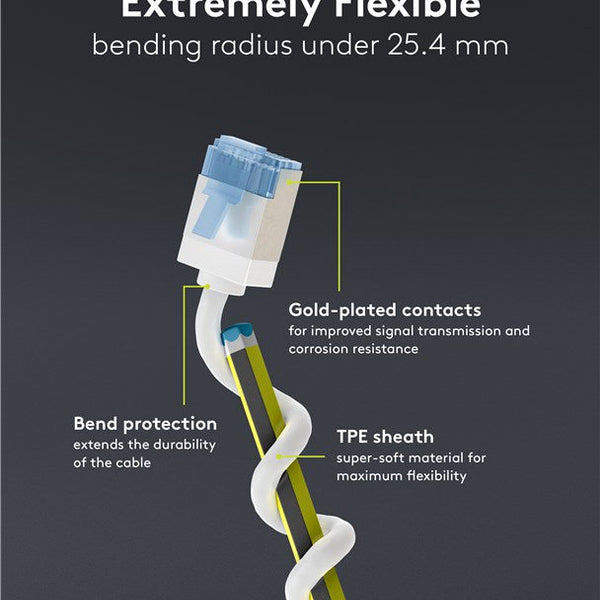

• Bending radius > : 25.4 mm
• Cable type : Slim (super flexible)
• Inner core material : Copper (CU)
• Outer cable material : LSZH-TPE
• Outer cable diameter : Approximately 3.8mm
• AWG : 32/7 (flexible conductors)
• Number of shields : 1x
• Shielding type : Foil (aluminium) PiMF (pairs in metal foil)
• Shielding class : U/FTP

Signal transmission:

• Maximum bandwidth : 500 MHz
• Impedance : 100 Ω

General:

• Markings : WEEE, CE
• Additional feature : Length indication on the connector
• Operating temperature : From -20 °C to 75 °C
• Packaging type : Paper label
