Product description

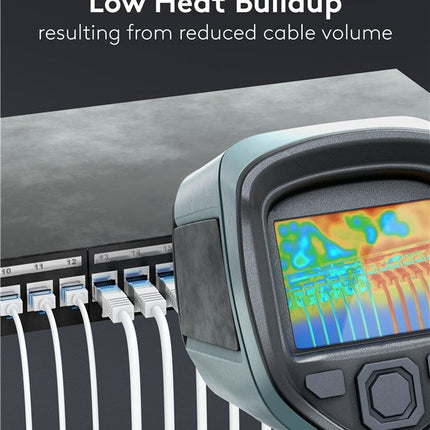

The super slim CAT cables with extra short connectors drastically reduce the material volume in server cabinets and patch panels - for significantly better air circulation and less heat development than with conventional cabling. In addition, the soft TPE sheath and slim copper conductors ensure the special flexibility and material efficiency that make this cable generation the perfect network partner.

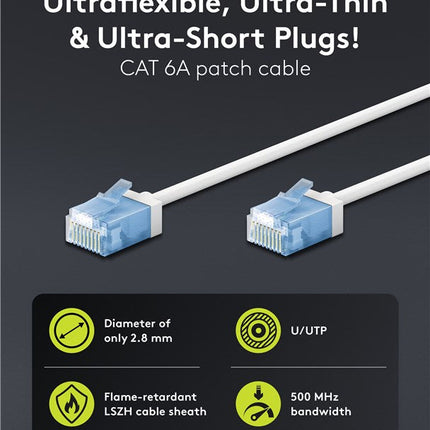

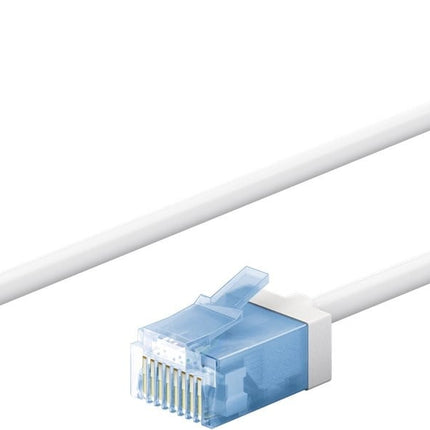

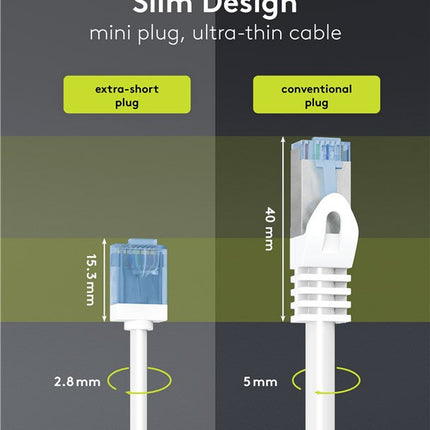

Super thin LAN cable with extra short RJ45 connectors for reduced cable volume in the server cabinet or patch panel, resulting in optimized air circulation

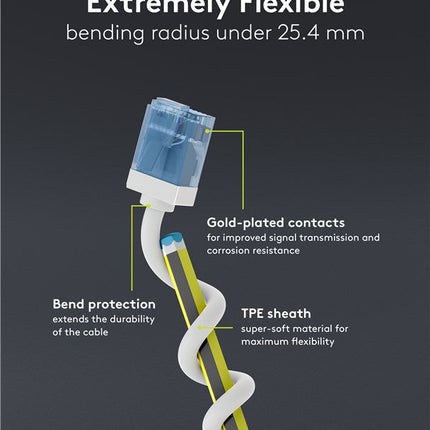

Safe and flexible: unshielded and with low-smoke, halogen-free TPE sheathing for a particularly small bending radius and high flexibility
With AWG 32 and an outer diameter of mm, the cable is ultra-slim but just as powerful as a standard CAT cable

The CAT 6A network cable is perfect for fast connections such as 10 Gigabit Ethernet 10GBASE-T, 100BASE-TX, 1000BASE-T and 10/100/1000/10000 Mbit/s

The RJ45 cable is suitable for Power over Ethernet (PoE, PoE+) and CAT 6A tested (supplied with individual measurement protocol)

High-quality copper conductor (CU) and gold-plated plug contacts ensure low transfer resistance and prevent corrosion
The compact kink protection effectively prevents cable breakage and ensures a long service life of the Ethernet cable

Technical specifications

Connection type: RJ45 male (8P8C)
Connection 2, type: RJ45 male (8P8C)
Contact us: EIA/TIA-568B
Connection, contact material: Gold-plated
Kink protection: both sides

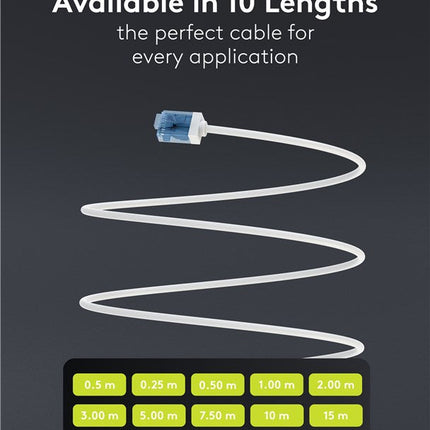

Cable length: 0.15 meters
Cable sheath material: LSZH-TPE
Inner conductor material: CU (copper)
Specification: CAT6A
Shielding class: U/UTP
Cable type: Slimcable (super flexible)
inner conductor, core diameter: 2.8mm
bending radius: 25.4mm
AWG: 32/7 (stranded)
Maximum bandwidth: 500 MHz
Colour White
Markings: WEEE, CE
Special feature: Length indication on connector
Operating temperature from -20°C
Operating temperature up to 60 °C
Packaging type: Cable label
Consumption unit: 1 pc. in bulk
