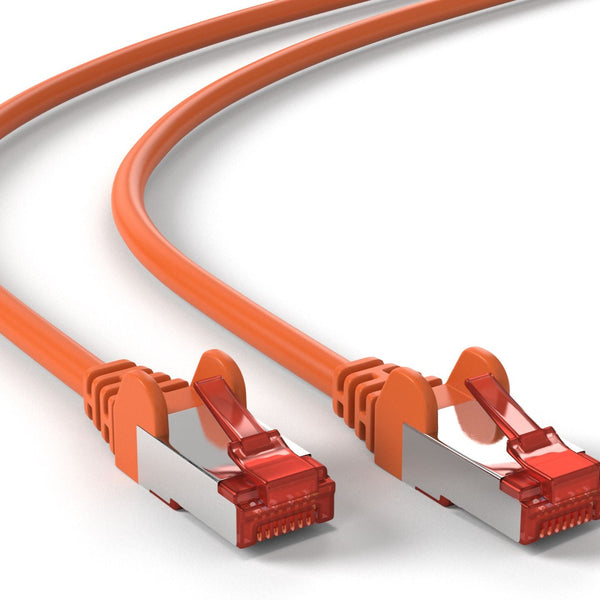

Cat6 S/FTP LSOH 5M Orange

Name: Cat6 S/FTP LSOH 5M Orange
Brand: Netwerkkabel.eu
SKU: 111180
Price: 6.7 EUR
Availability: InStock

Product form

Cat6 S/FTP LSOH 5M Orange

SKU: 111180

Double shielded LAN/network cable to connect network components with 2 x RJ45 connectorsCAT 6testedwith 3µ gold plated PINspairs screening: PIMF... Read more

Delivered tomorrow

Shipped today? Order within: Oct 09, 2024 21:30:00 +0200

(€8,11 Incl. VAT)€6,70

Need a larger quantity?

Request quote

Lowest price guarantee!

Shipping from just € 5,95

Pay afterwards after 14 days

2 year warranty on your purchase

Can we help you with anything?

Do you have any questions or need advice? We are happy to help you!

Contact us!

Ask your question

Additional products

Cat6 S/FTP LSZH 5M Yellow
(€8,11 Incl. VAT)€6,70
Cat6 S/FTP LSZH 3M Red
(€5,29 Incl. VAT)€4,37
Cat6 S/FTP PIMF LSOH orange 3 meter
(€5,29 Incl. VAT)€4,37
37U server cabinet with perforated doors 600x1000x1833m (WxDxH)
€1.186,95€980,95 -25% -25%
(€888,55 Incl. VAT)€734,34

Inner conductor material: Full Copper
max. bandwidth: max. bandwidth
Outer sheath: LSZH (LS0H)
Category: Cat6
Snagless: Yes
Connector 1: RJ45 (8P8C) Male
Connector 2: RJ45 (8P8C) Male
Overall Screening: Metal Braid
Screening per Pair: Aluminium Foil
Cable: 4 Pair (4x2), AWG28
Color: Orange
Connection cable length: 5 M
Boots: Molded
Type Cable: S/FTP
Connection: 10/100/1000 Mbit (1 Gigabit)
Packaging unit: 1 piece
Diameter Ø: 6 mm
Show more less

Double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
CAT 6tested
with 3µ gold plated PINs

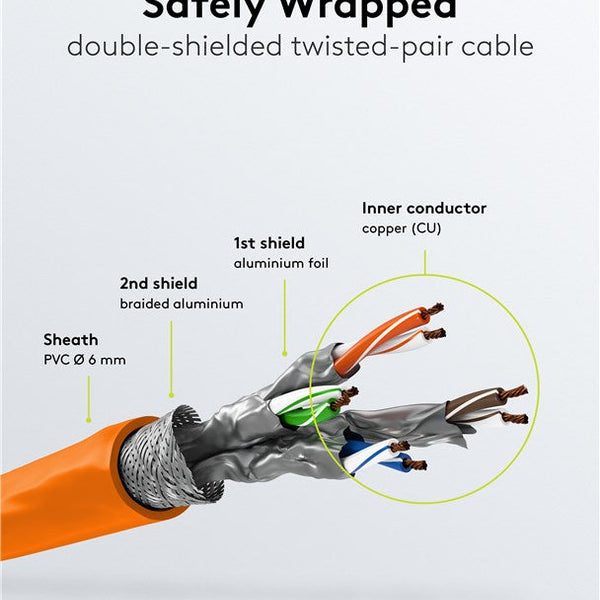

pairs screening: PIMF (pairs in metal foil) + outer shield: braiding

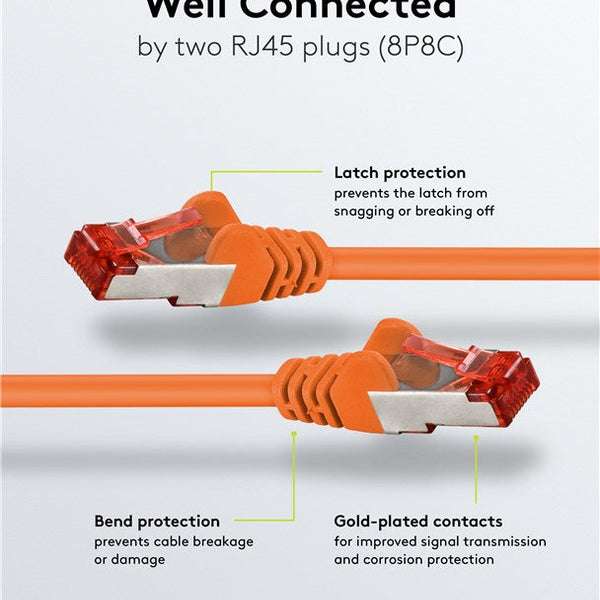

with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B

Connection, type RJ45 male (8P8C)
Connection 2, type RJ45 male (8P8C)
Latch protection both sides
Connection, shielding yes
Cable type round cable
Specification CAT 6
Shielding class S/FTP (PiMF)
AWG 28/7 (stranded)
Cable sheath diameter (approx.) 6 mm
Inner conductor material CU (copper)
Cable length 0.5 m
Material cable sheath LSZH
Number of shieldings 2 x
Type 1, shielding foil (alu) PiMF
Type 2, shielding braid (alu) overall shield
Kink protection both sides
LSZH compliant yes
max. bandwidth 250 MHz
Consumption Unit 1 pc. in polybag
Color grey
Operating temperature from -20 °C
Operating temperature up to 65 °C
