Product form

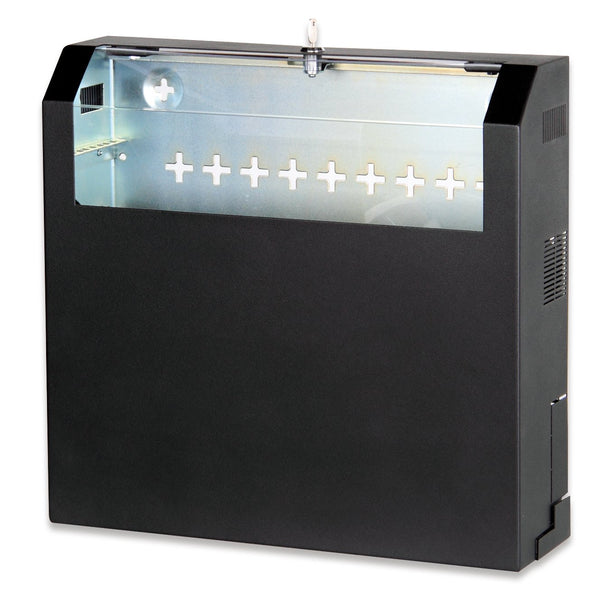

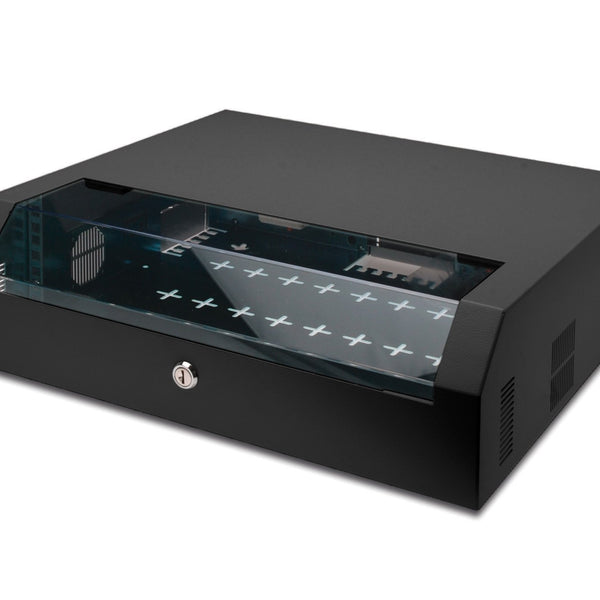

Wall cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fixed, color black (RAL 9005)

Name: Wall cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fixed, color black (RAL 9005)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-04U-PB-B
Price: 247.72 EUR
Availability: InStock

247,72 Incl. VAT204,73 Excl. VAT

Delivered Thursday

SKU: DN-19-04U-PB-B

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

TECHNICAL DETAILS

Protection class IP20
Lockable housing with transparent polycarbonate panel

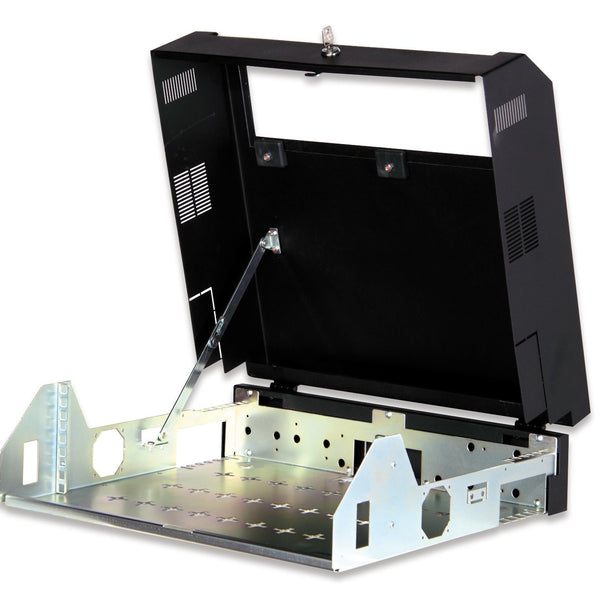

Top part of the housing can be opened up to 80°
Steel door stop mechanism keeps the door open
1-point four-point locking
2 separate 483 mm (19") installation options: 3U vertical (rotatable), 2U horizontal (fixed)
Max. installation depth (from front vertical rail to stop on rear horizontal rail): approx. 265 mm
2.0 mm thick sheet steel with high load-bearing capacity, powder-coated
Pre-punched recesses for cable routing
Ventilation slots for active and passive ventilation
Space for cable ties
Lower housing section with punched mounting holes for mounting equipment that is not 483 mm (19") compatible
Mounting plate is optionally available
Fan mounting dimensions: 57.5 x 57.5 mm
Hole spacing for fan mounting: 50 x 50 mm (3.5 mm diameter)
Cabinet type: Wall cabinet, home automation
Colour: black, RAL 9005
Depth: 475 mm
Front door: Glass door, single opening
Load capacity: 30 kg
Side panels: Both sides
Units: 5
Width: 525mm
IP protection class: IP20
Mounted: yes
