UTP CAT6 solid 100M 100% copper purple

Note: you can find the correct connectors for this item HERE.

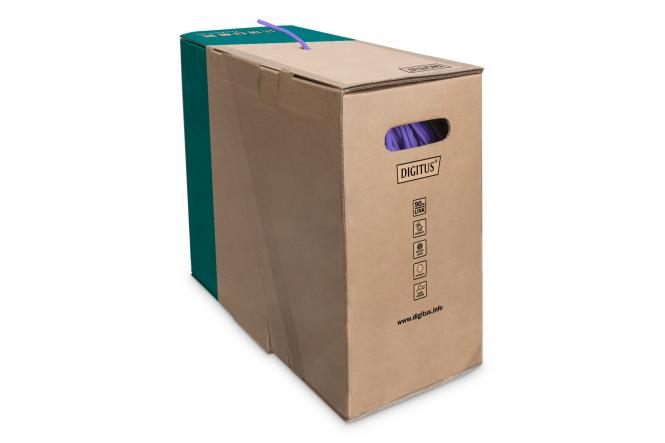

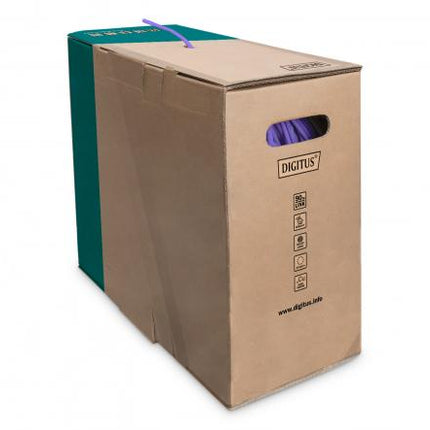

UTP CAT6 solid network cable 100M 100% copper violet. The cable has an AWG value of 23 with an LSZH jacket. Suitable for networks up to 1Gbit with a bandwidth of 250MHz. Supplied in a convenient pull-out box without pre-molded connectors, ideal when the cable needs to be pulled through conduits. Thanks to the 100% copper conductors, this cable is suitable for the use of PoE (Power over Ethernet). A solid cable is always used when working with wall outlets, patch panels, or LSA strips in general.

• Conductors: AWG 23/1 Bare copper wire, nominal diameter 0.57 mm
• Insulation: HD-PE
• Total number of insulated conductors: 8, divided into 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Pair shielding: none
• Total shielding: none
• Outer jacket: Halogen-free (FRNC-B/LSZH-1)
• Outer jacket thickness: 0.50 mm nominal
• Color: Violet (RAL 4005)
• Tensile load: 150N max.
• Dynamic bending radius: 8x OD mm min.
• Static bending radius: 4x OD mm min.
• Transport and storage temperature: -20 °C to +60 °C
• Operating temperature range: -20 °C to +75 °C
• Installation temperature: 0 °C to +50 °C
• Outer diameter: 6.2 mm nominal
• Flame retardancy: IEC 60332-1
• Halogen-free and smoke density: IEC 60754-2 & IEC 61034
• Weight (kg/km): 41 kg
• Average impedance: 100±5Ohm at 1MHz - 600MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-to-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• Loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Operating voltage: 72 Vdc max.
• Insertion loss 40 dB
• Phase delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• NVP: 69%
• Assortment: Twisted Pair Installation Cables
• Category: CAT 6
• Shielding: U-UTP, unshielded
• CPR: Eca
• Length: 100 m
• Color: violet
• Jacket: LSOH
• Structure: 4 x 2 AWG 23/1, solid twisted pair
