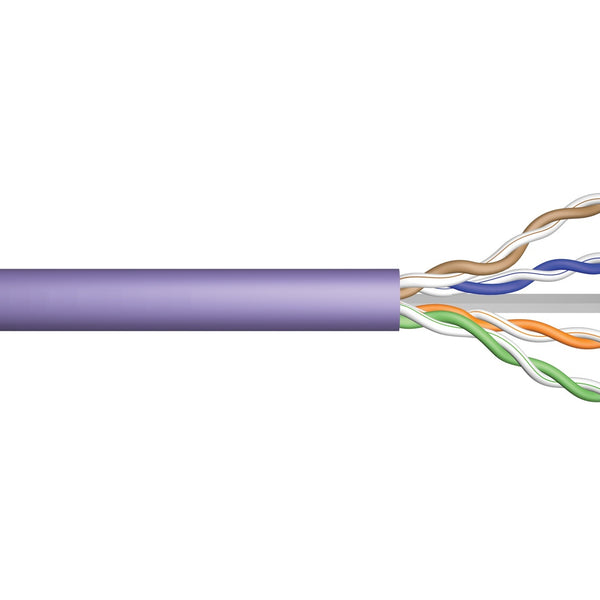

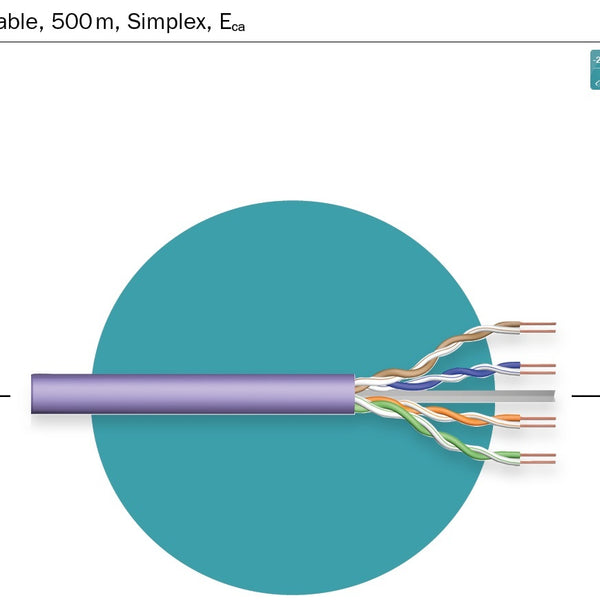

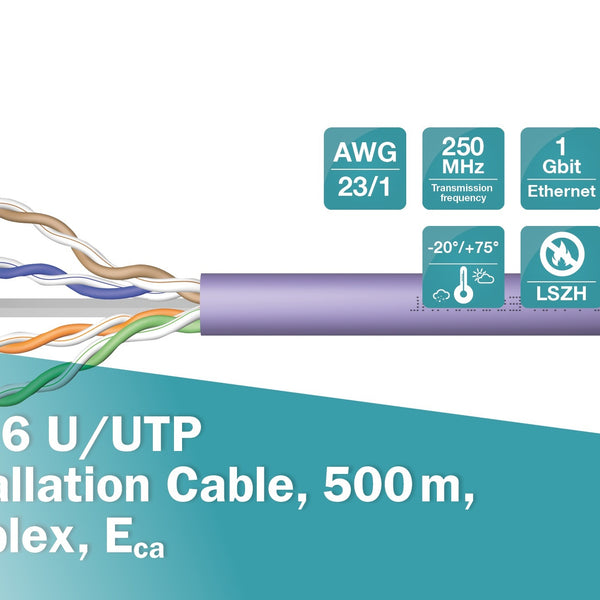

UTP CAT6 network cable solid 500M 100% copper violet

Please note: the proper plugs for this cable can be found HERE.

• 1GBit Ethernet
• 250 MHz transmission frequency
• PoE Power over Ethernet support
• CPR class Eca
• GHMT certified

• Conductor: Bare annealed copper, solid AWG 23/1
• System/s of AVCP: AVCP 3
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: None
• Outer sheath: Eca acc. to EN 50575; LSZH
• Outer sheath diameter (nominal): 0,5 mm
• Outer sheath color: Purple (RAL 4005)
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +60 °C
• Operating temperature range: -20 °C up to +75 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter Simplex (nominal): 6,1 mm
• Weight (kg/km): 41 kg
• Impedance: 100±5Ohm @ 1 - 250MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 3
• Signal propagation delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Separating class: ,,b" acc. to EN 50174-2
• NVP: 69%
• Assortment: Twisted Pair Installation Cables
• Category: CAT 6
• Shielding: U-UTP, unshielded
• CPR: Eca

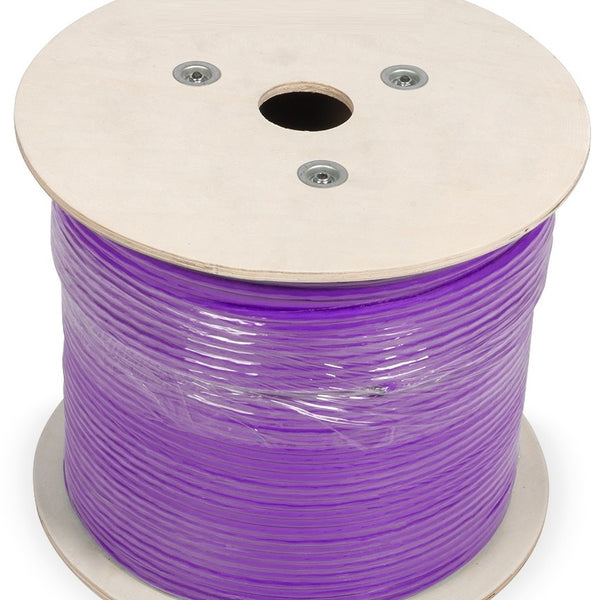

• Length: 500 m
• Color: violet
• Jacket: LSOH
• Structure: 4 x 2 AWG 23/1, solid twisted pair
