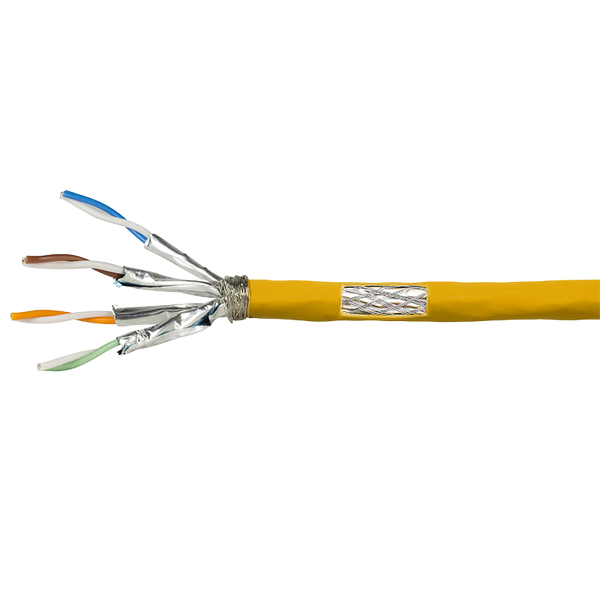

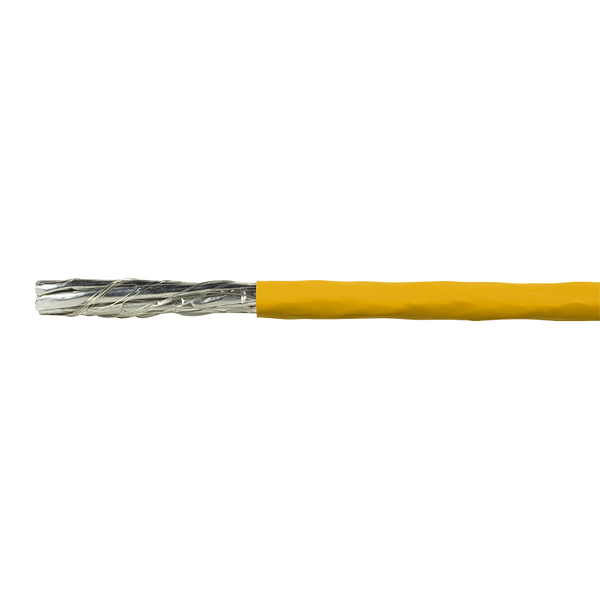

S/FTP CAT7a network cable solid 50M 100% copper yellow

Name: S/FTP CAT7a network cable solid 50M 100% copper yellow
Brand: S-Conn Handels GmbH
SKU: 220016
Price: 91.58 EUR

Item no.: 220016

Connection cable length	50 M
Color	Yellow
Inner conductor material	Full copper
max. bandwidth	1200MHz
Screening per Pair	Foil (Pair in metal foil)
Outer sheath	LSZH (Low Smoke Zero Halogen)
Category	CAT7a
Diameter Ø	mm
Cable	4 Pair (4x2) AWG 23
Overall Screening	S/FTP (double-shielded)
Type Cable	S/FTP
Connection	10Gbit
Packaging unit	1 piece
Conductors	Solid
CPR Fire Class	B2ca-s1a,d0,a1
Suitable for POE	Yes
Conformity	ISO/IEC 11801, IEC 61156-5, EN50173, EN50288
Diameter of insulated conductor:

The right plugs for this product can be found HERE.

S/FTP CAT7a network cable solid 50M 100% copper with CPR class B2ca -s1,d1,a1. This cable has AWG 23 with a LSZH (Low Smoke Zero Halogen) outer jackt. Suitable for networks up to 10Gbit with a bandwith of 1200MHz. Will be delivered without plugs attached for easy installation. Thanks to the 100% copper conducter, this cable is perfect for the use of PoE (Power over Ethernet). A solid cable will always be used when you need to install wall outlets or patch panels.

What is the difference between UTP, FTP en S/FTP?

The terms above indicate whether the cable has no, one or more shields. A UTP cable is not shielded and installation near other cables can lead to malfunctions. Simply put, FTP is a single shield, where S / FTP is double shielded and interference is virtually impossible. Not sure yet? You can always contact us! We are happy to advise you on which cable you may need.
