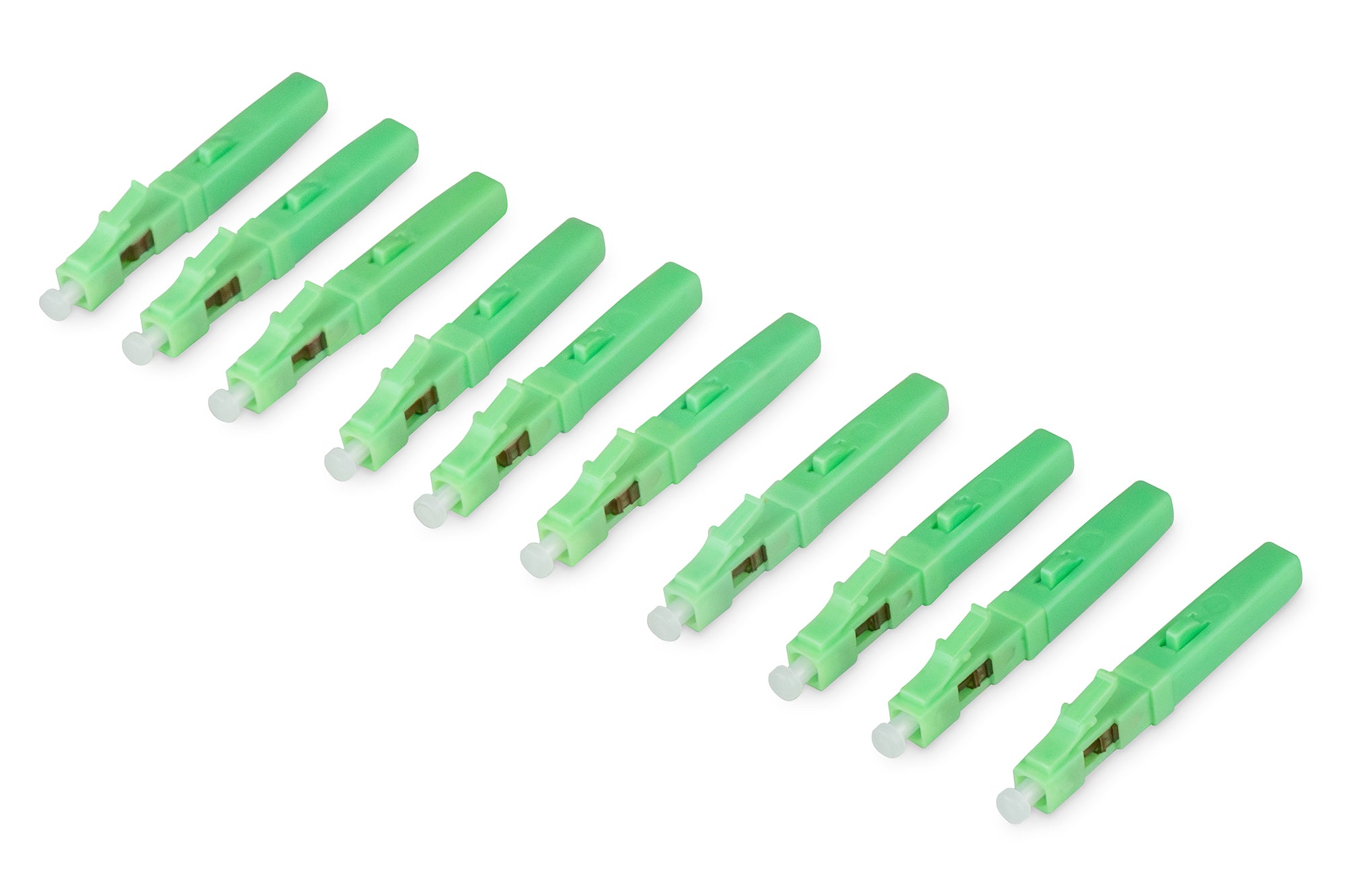

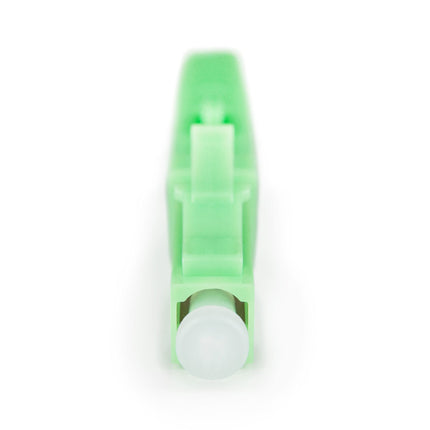

LC/APC LWL-Fast Connector Field installation singlemode (10 pieces)

Name: LC/APC LWL-Fast Connector Field installation singlemode (10 pieces)
Brand: ASSMANN Electronic GmbH
SKU: DN-FC-9101-APC
Price: 72.59 EUR
Availability: InStock

72,59 Incl. VAT59,99 Excl. VAT

Delivered Thursday

SKU: DN-FC-9101-APC

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

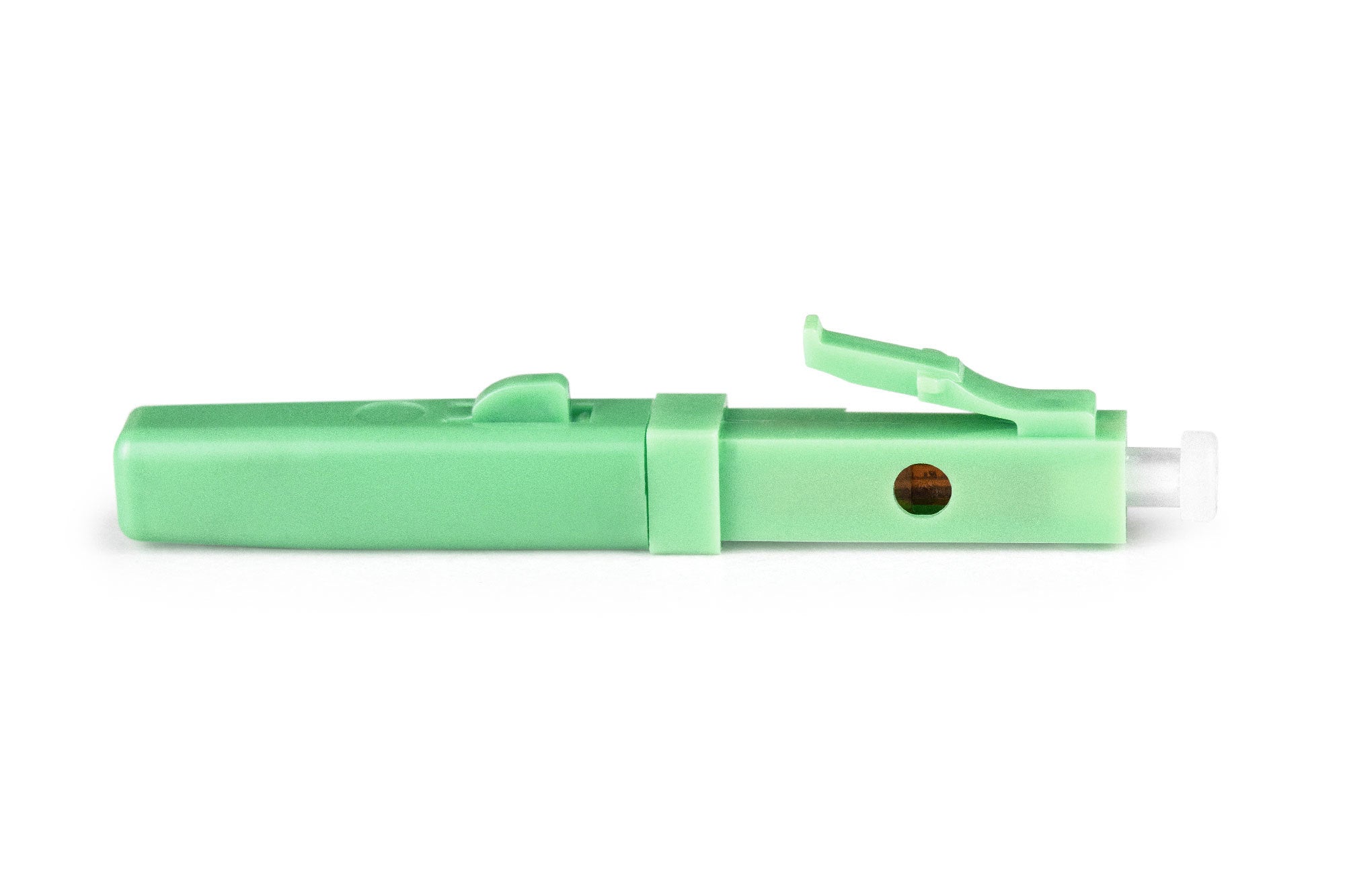

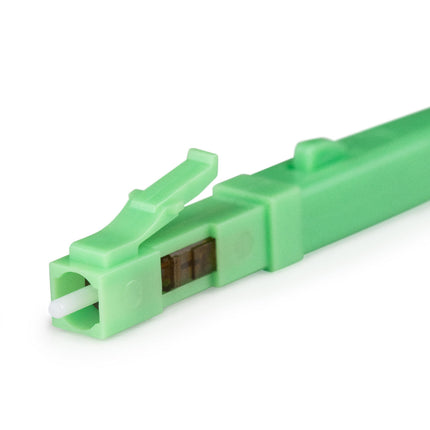

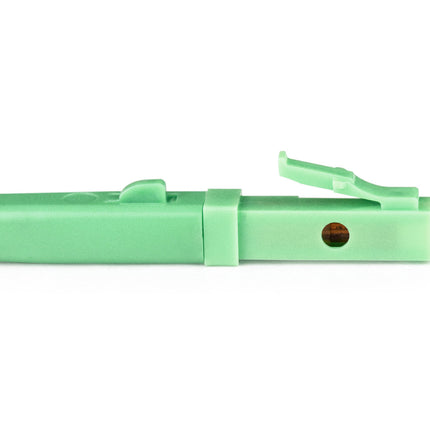

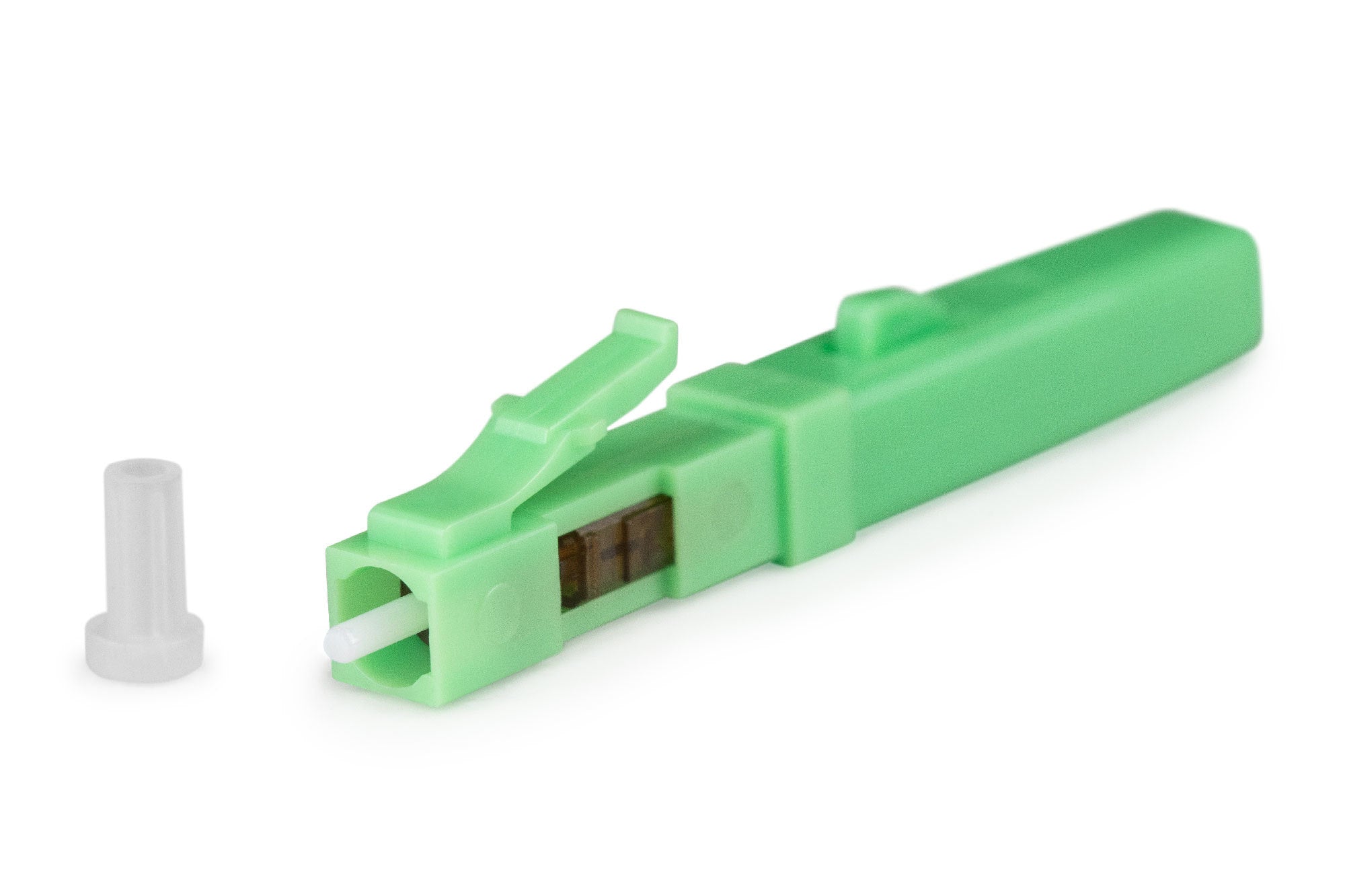

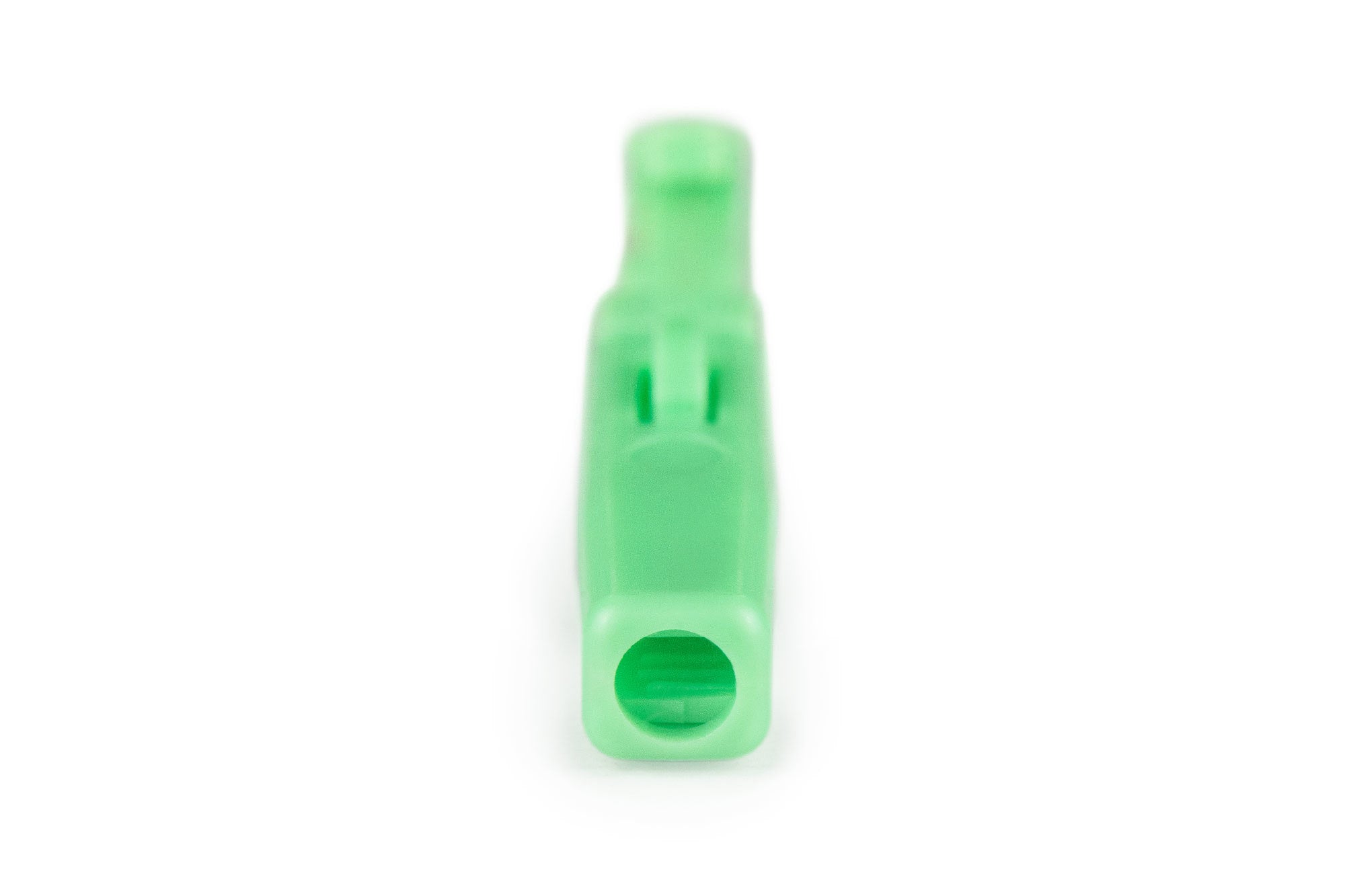

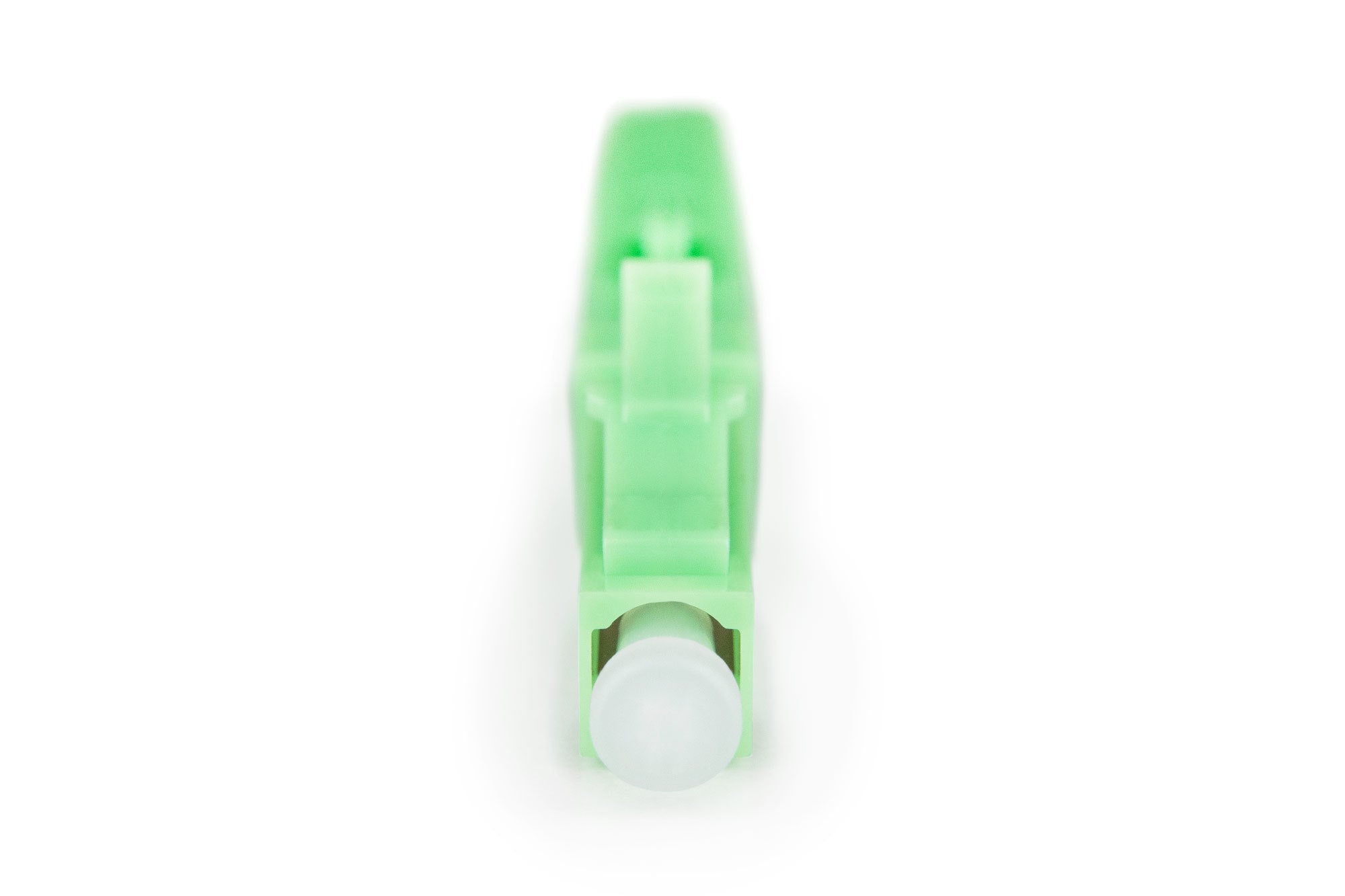

LC/APC SM Fiber Optic Fast Connector Field-installation Pack of 10 Pieces

LWL field plugs are specially designed for quick and easy connection of fibre optics on site. For uncomplicated fast repairs to existing installations and for new installations, e.g. for internal FTTx cabling.

Quick and easy to install
Good optical properties
Low damping value
Suitable for all common single-mode fibers
For 0.9mm thick fiber sheath
LC/APC ceramic ferrule 2.50mm thick
Robust strain relief
Sustainable index matching gel
No complicated splicing equipment required
Few tools required

Description

The LC/APC fiber optic field connectors are used for connecting fiber optic cables and for maintenance repairs at various network levels. Manual polishing of the connector ends or splicing on site is no longer necessary. The mechanical splicing technology ensures precise fiber alignment and provides instant, low-loss termination for single-mode optical fibers. The achieved attenuation does not exceed 0.3 dB. The connectors can be used in all optical networks where a UPC connector is required. They are suitable for optical cabling in primary/secondary/tertiary cabling and for use in FTTx networks.

Technical details

Plug type: LC
Polishing type: APC
Fiber Mode: 9/125μm Singlemode
Ferrule: ceramic (1.25mm)
Connection loss ≤0.2dB
Return loss ≥50dB
Cable diameter: 0.9/2.0/3.0mm
Product color: Green
Storage temperature: -40 to 85 °C
Operating temperature: -20 to 75°C
Dimensions: 45mm length

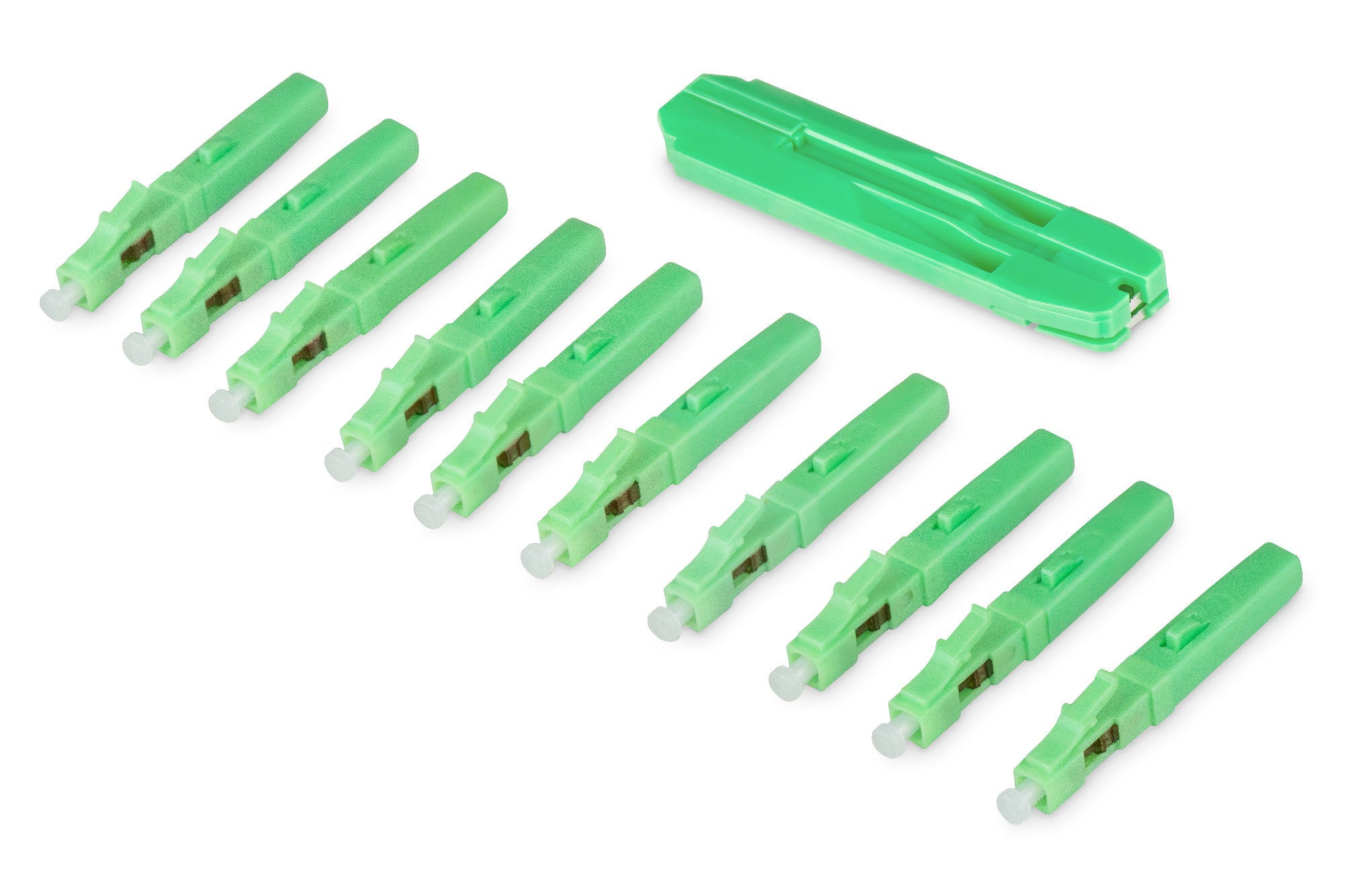

Package content

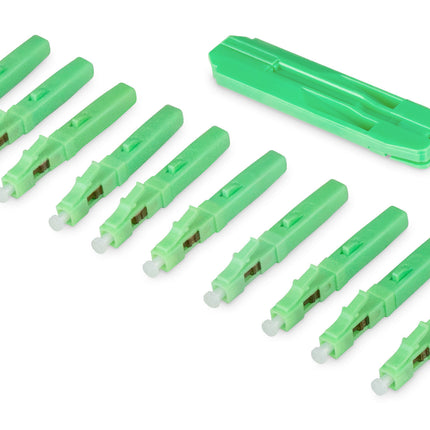

10 x LC/APC Fiber Optic Cable Connector

Logistics

	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
Packaging unit cardboard	100	4.20	43.00	32.50	28.00	39,130.00
Packaging unit inside	1	0.04	0.00	0.00	0.00	0
Packaging unit single	1	0.04	15.00	10.00	6.90	1,035.00

Customs tariff number : 8536700010

Safety notes

Avoid direct contact with light sources: Fiber optic cables, especially those with active light sources such as lasers (e.g. in optical communication systems), can emit hazardous radiation that can damage the
eyes. Never look directly into the light from an optical fiber, even if the light source is invisible to the naked eye.
When working with fiber optic cables, especially during testing or when working with lasers, safety glasses should always be worn to protect against harmful radiation.
When connecting or disconnecting the cable, only hold the plug and do not pull directly on the cable.
Do not kink or crush: Fiber optic cables are sensitive to mechanical stress.
To protect cables from physical damage, they should be laid in special cable ducts or with protective materials.
Keep Cable Connectors Clean: Fiber optic cables are susceptible to dust and dirt. Even small particles on the connectors can seriously affect signal quality.
Cables must not be used in environments with extremely high or very low temperatures. Please note the product information regarding the maximum operating temperature of the cable.
Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately.
