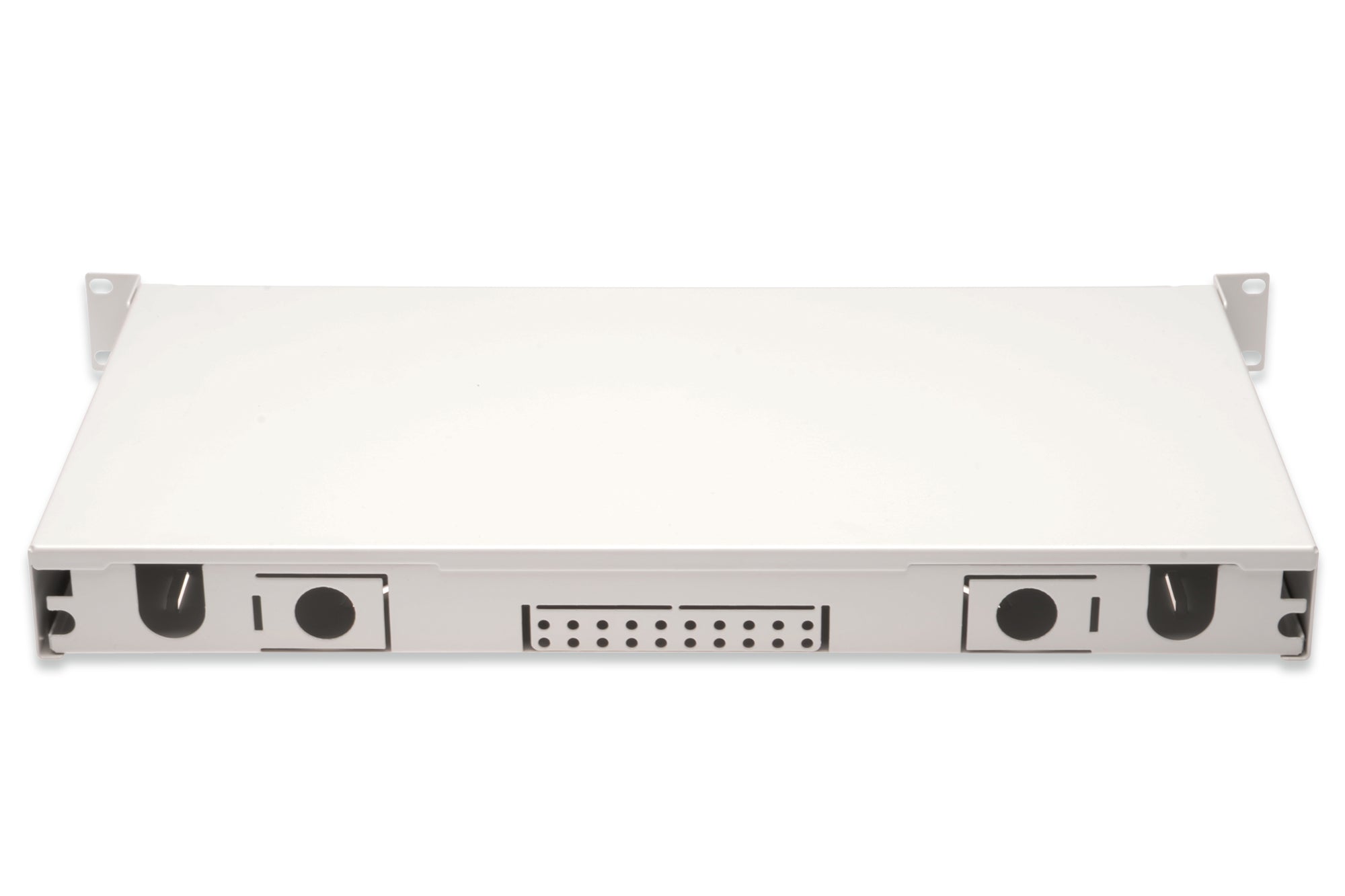

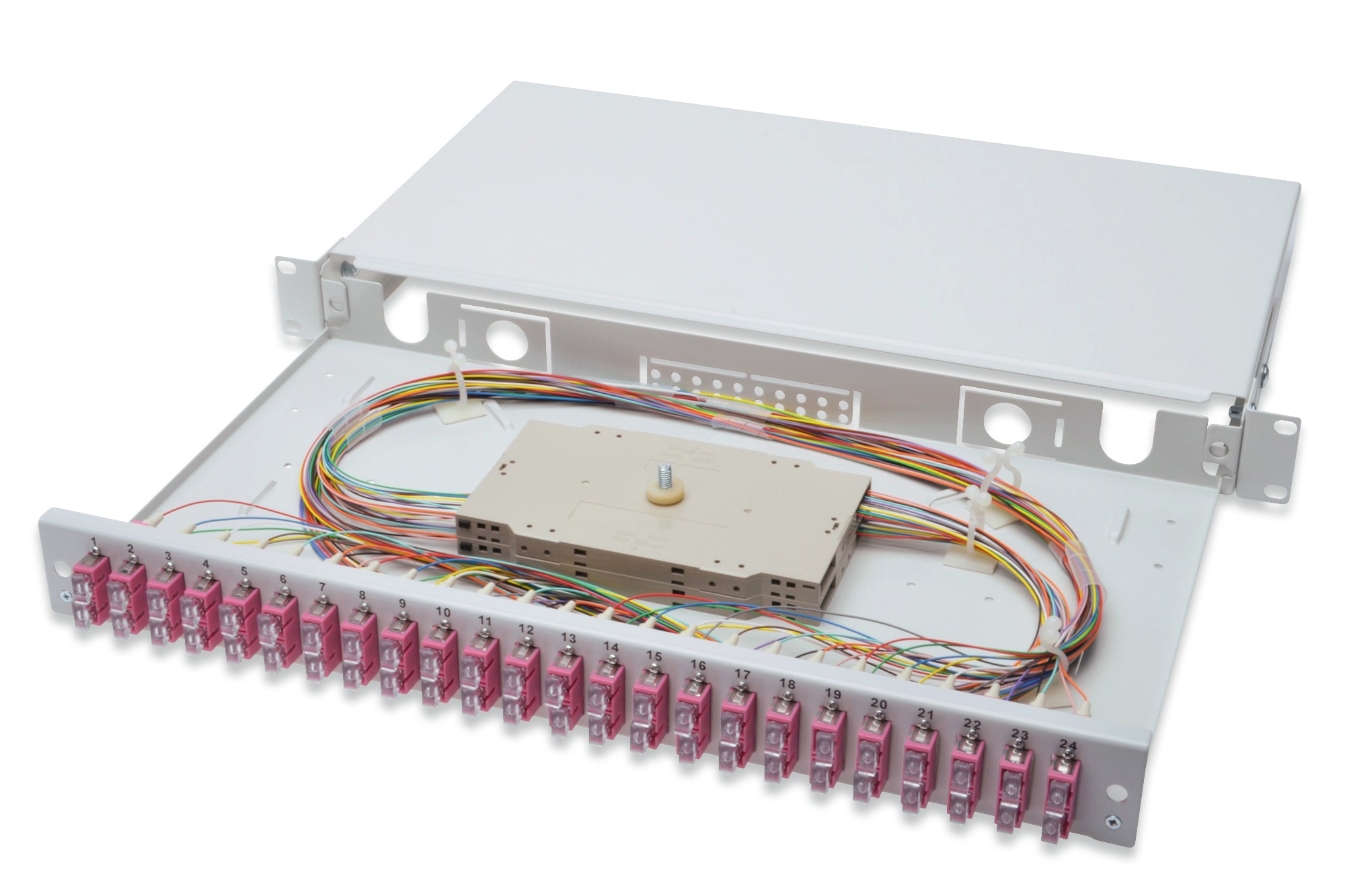

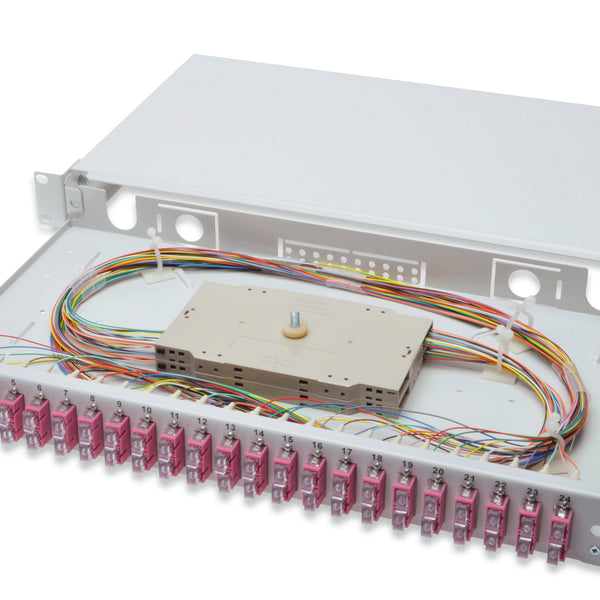

Fiber optic patch panel mounted 24 ports SC OM4

Name: Fiber optic patch panel mounted 24 ports SC OM4
Brand: ASSMANN Electronic GmbH
SKU: DN-96322-4
Price: 353.31 EUR

Item no.: DN-96322-4

Fiber optic splice box, 1U, fully equipped, 24x SC DX, OM4 incl. splice box, colored pigtails, couplings.

Splice box, 1U, fully equipped / mounted, 24x SC DX, OM4, incl. splice cassette, colored pigtails, couplings

Fully pre-assembled, fiber optic pigtails mounted in the splitter cassette(s)
Colorful Pigtails
Couplings with ceramic sleeves
Couplings in plastic housing
Carrier housing made of 1.0mm sheet steel, painted
1 Height unit (44.45 mm)
483mm wide (19")
240 mm deep
M20/M25 screws, cassette, cassette cover and strain relief included in delivery.
Extendable

	Number (pcs)	Weight (kg)	Depth (cm)	Width (cm)	Height (cm)	cm³
Packaging unit cardboard	1	3.20	27.00	51.50	5.50	7,647.75
Packaging unit inside	1	3.20	0.00	0.00	0.00	0
Packaging unit single	1	3.20	50.00	28.00	5.00	7,000.00

Customs tariff number : 8517620090

Avoid direct contact with light sources: Fiber optic cables, especially those with active light sources such as lasers (e.g. in optical communication systems), can emit hazardous radiation that can damage the
eyes. Never look directly into the light from an optical fiber, even if the light source is invisible to the naked eye.
When working with fiber optic cables, especially during testing or when working with lasers, safety glasses should always be worn to protect against harmful radiation.
When connecting or disconnecting the cable, only hold the plug and do not pull directly on the cable.
Do not kink or crush: Fiber optic cables are sensitive to mechanical stress.
To protect cables from physical damage, they should be laid in special cable ducts or with protective materials.
Keep Cable Connectors Clean: Fiber optic cables are susceptible to dust and dirt. Even small particles on the connectors can seriously affect signal quality.
Cables must not be used in environments with extremely high or very low temperatures. Please note the product information regarding the maximum operating temperature of the cable.
Check cables regularly for visible damage such as cracks, kinks or signs of wear. Defective cables should be replaced immediately.
