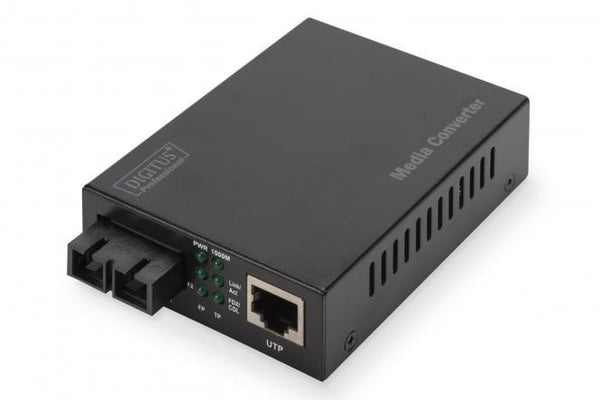

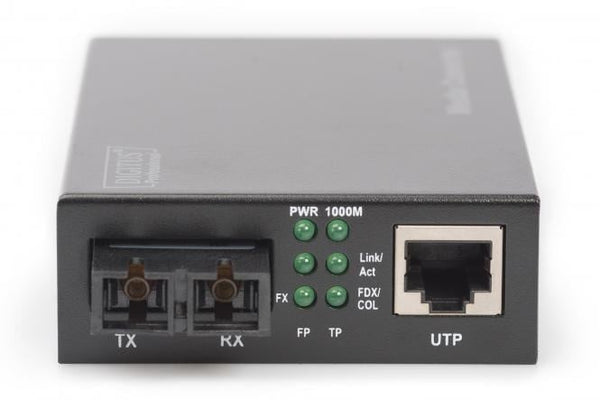

Gigabit media converter, RJ45/SC

Name: Gigabit media converter, RJ45/SC
Brand: ASSMANN Electronic GmbH
SKU: DN-82120-1
Price: 107.69 EUR

107,69 Incl. VAT89,00 Excl. VAT

Levertijd 3-5 werkdagen

SKU: DN-82120-1

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

SC/SC coupling, multimode
2,90 Incl. VAT2,40 Excl. VAT
SC/SC coupling, Singlemode
3,87 Incl. VAT3,20 Excl. VAT
SC/SC coupling, multimode
5,08 Incl. VAT4,20 Excl. VAT
SC / SC Duplex Coupling, OM4, color pink
5,81 Incl. VAT4,80 Excl. VAT
Fast Ethernet Media Converter, RJ45/SC
37,87 Incl. VAT31,30 Excl. VAT

Technical details

Transforms wire-based networking media to fiber optic
High quality and excellent reliability
10/100/1000Base-TX to 1000Base-SX
Connections: 1x RJ45, 1x SC duplex
Distance up to 0.5 km
Wavelength: 850nm
Multimode dual fiber
Automatic cable detection - auto MDI / MDI-X function
Automatic negotiation of full and half duplex

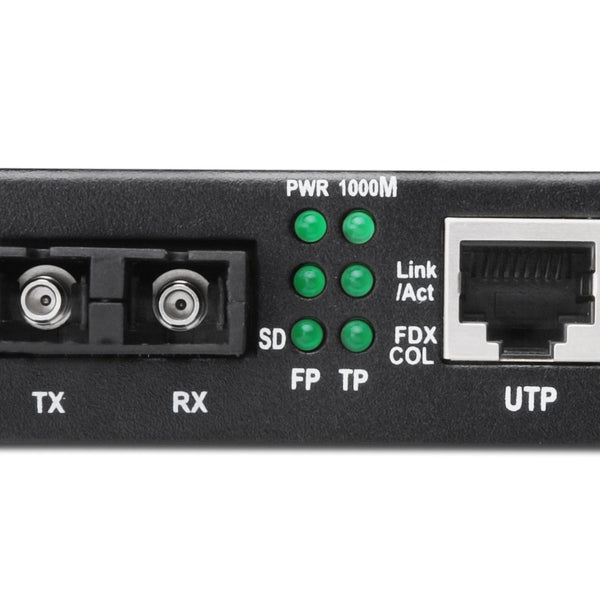

Diagnostic and monitoring LEDs for power, connection and port operation status
Suitable for 50/125µm and 62.5/125µm fiber optic cables
Transmit power: Minimum -17 dBm, Maximum -12 dBm
Sensitivity Receiving Power: Minimum -20 dBm
Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
2 MB data buffer
Operating temperature: 0 to 60°C
Dimensions (L x W x H): 95mm x 70mm x 26mm
Weight: 200g
Standalone converter with external power supply
Input voltage: 5V DC
Connection 1: RJ45
Connection 2: SC
Mode: Multimode
Distance (km): 0.5
Industrial use: no
Broadcast Mode: Unidirectional
PoE injector: no
Ethernet Speed: Gigabit
