Pre-assembled Fiberglass 50 M Universal Breakout Cable, Multi Mode OM4, 8 Fibers, LC/UPC - LC/UPC
-
Specifications
-
Product description
| Color | Grey |
| Connector 1 | RJ45 (8P8C) Male |
| Connector 2 | RJ45 (8P8C) Male |
| Type Cable | S/FTP |
| Form | Duplex |
| Outer sheath | PVC |
| Packaging unit | 1 piece |
| Color Outer sheath: | |
| Insertion Loss: | |
| Return Loss: | |
| Test method: | |
| Test report: | |
Show more

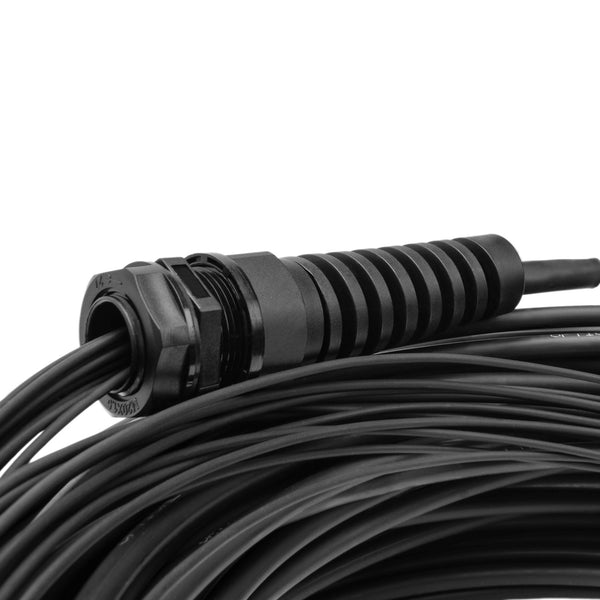

This pre-assembled breakout fiberglass cable is perfect for installations that require an extremely robust and reliable fiberglass design where maximum mechanical protection is necessary. It offers a secure Plug & Play solution for installations with the pre-assembled plug. Easy installation on partially equipped patch panels, for example. The measurement report included in delivery eliminates the need for laborious follow-up inspection.
TECHNICAL DETAILS
- Cable type: Breakout / Universal cable (I/A-DQ (ZN) BH X G 50/125µm)
- Fiber category: Multi mode
- Fiber type: OM4 50/125
- Number of strands: 8
- Length: 50
- Plug connection 1: LC/UPC
- Plug connection 2: LC/UPC
- Sheath material: Dca
- Color of outer sheath: Black
- Halogen-free (in accordance with EN 50267-2-3): Yes
- IL in multi mode: max. 0.3 dB
- IL in single mode: max. 0.3 dB
- RL in multi mode: min. 30 dB
- RL in single mode: min. 50 dB
- Operating temperature: -20 to 70℃
- Storage temperature: -20 to 70℃
- Two-sided insertion tool for secure installation
- Application: universal
- Boot: single-color
- Cable jacket: LSOH
- Cable type: U-DQ (ZN) BH X E 9/125µm
- Color cable: black

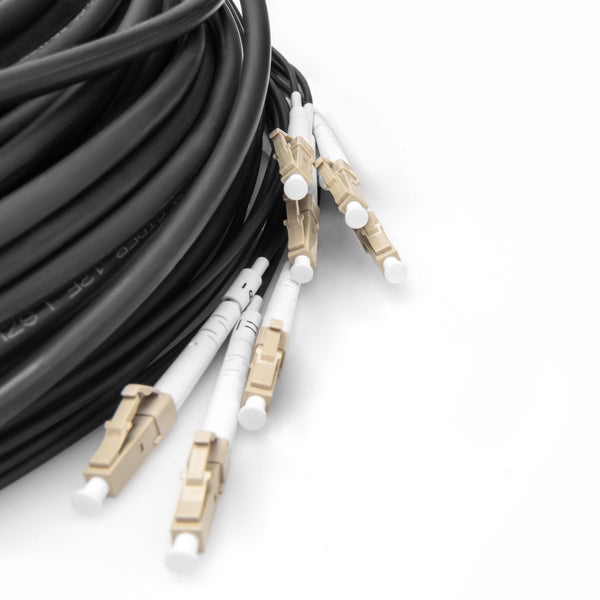

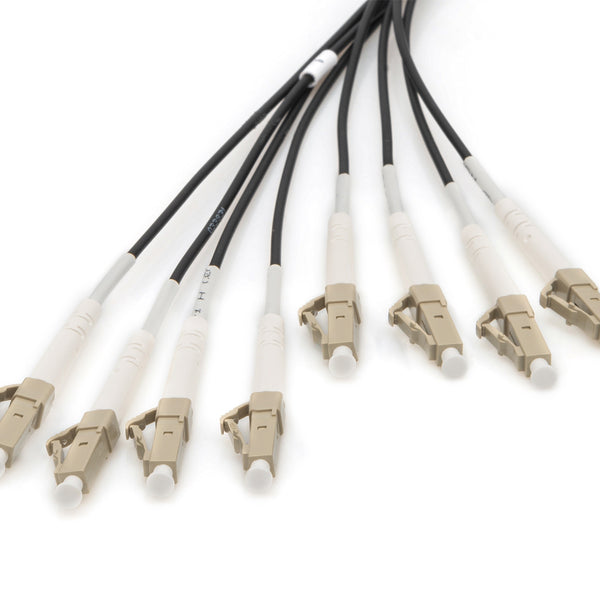

- Connector 1: LC
- Connector 2: LC
- Fiber class: OM4
- Fiber diameter: 50/125µ
- Mode: Multimode
- Number of connectors side 1: 1
- Number of connectors side 2: 1
- Number of fibers: 8
- Polishing: UPC
- Length: 50 m
