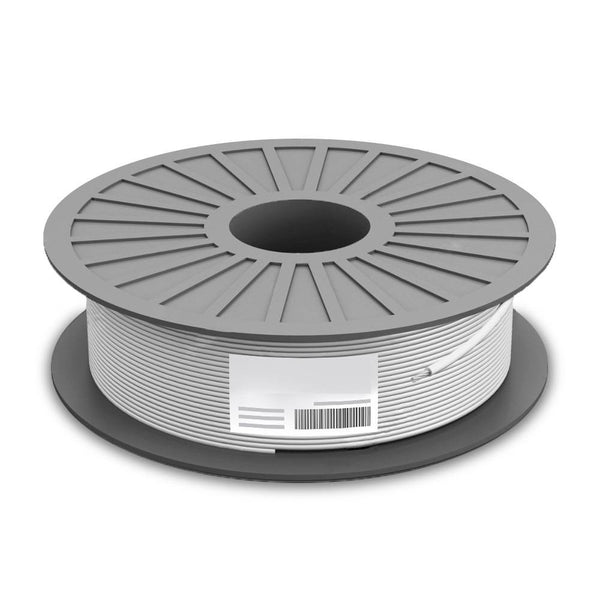

COAX Cable 120 dB CCS 100M White

Digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
quadruple signal shield for particular protection over long distances
meter scaling on the cable simplifies building installation
delivered on a simple cardboard cable spool

Fire class according to DIN EN 13501-6 Eca
Cable type round cable
Dielectric diameter 4.6
Cable sheath diameter (approx.) 6.9 mm
Inner conductor material CCS 15 (15% copper-clad steel)
Cable length 100 m
Number of shieldings 4 x
Meter scaling yes
Type 1, shielding foil (aluminum)
Type 2, shielding braid (aluminum) 64x
inner conductor, core diameter 1.1
Type 3, shielding foil (aluminum)
Type 4, shielding braid (aluminum) 64x
Shielding efficiency 120 dB
Impedance 75 ?
Consumption Unit 1 pc. cable reel
Outer sheath material PVC
Color white
Operating temperature from -20 ﾰC
Operating temperature up to 75 ﾰC
Weight 4978 g
