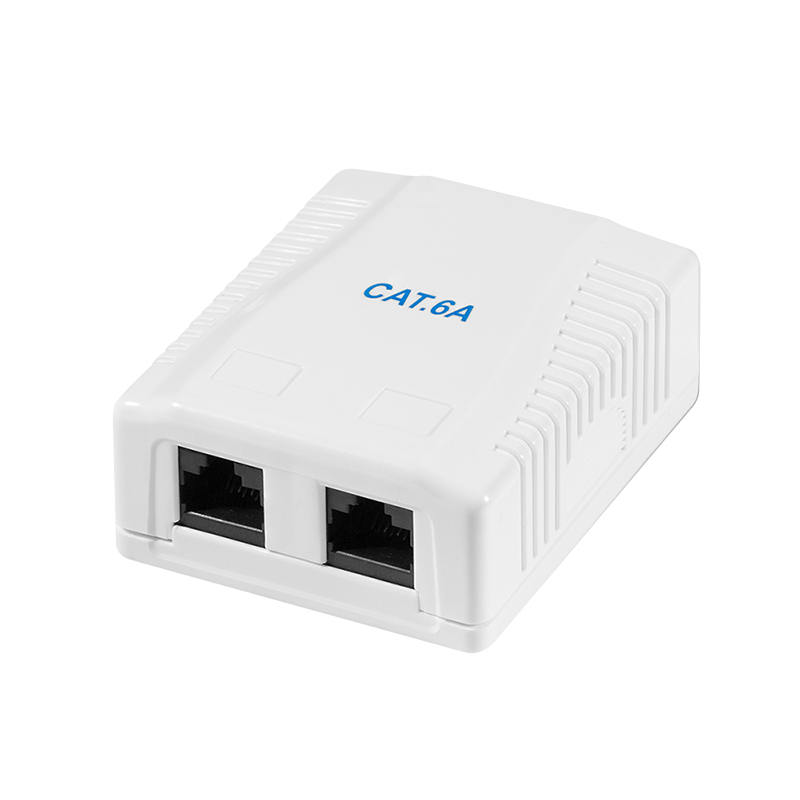

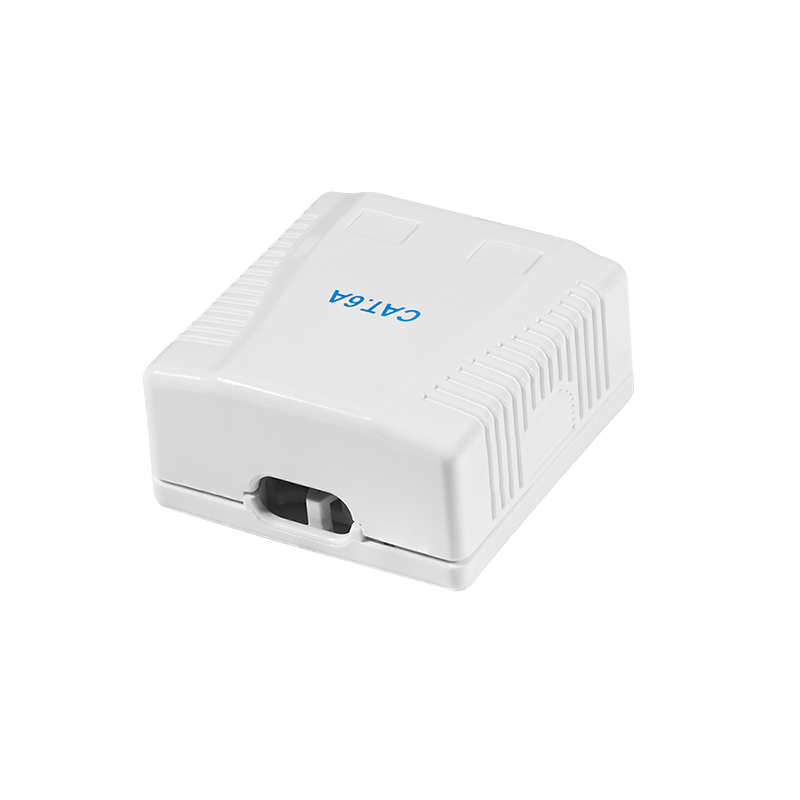

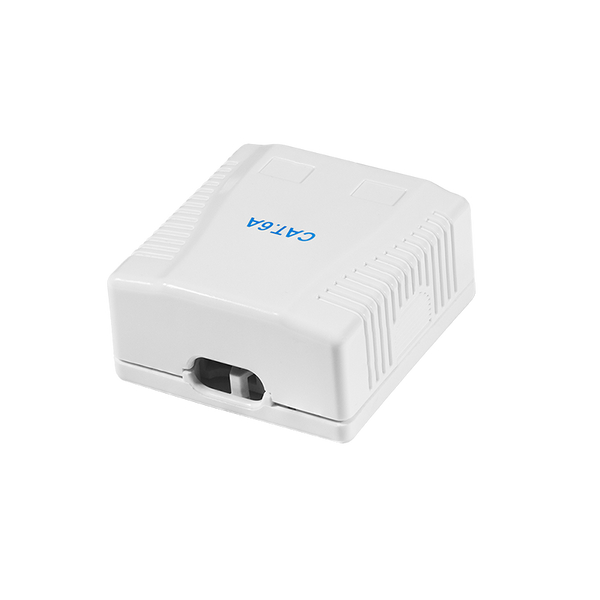

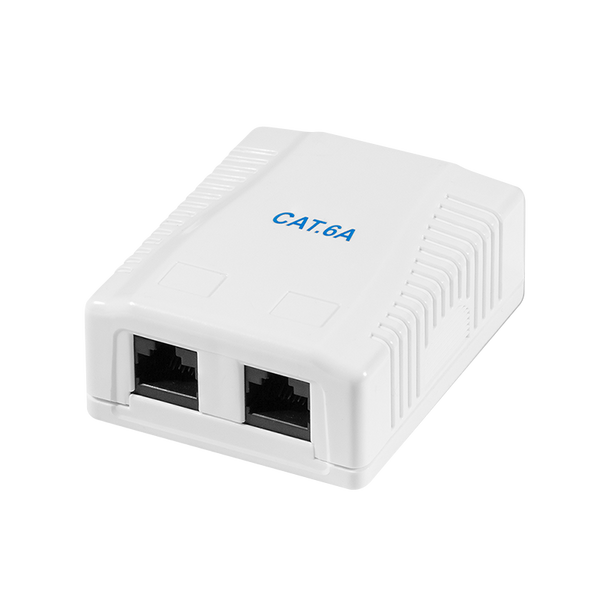

CAT6a surface-mounted box 2x RJ45 STP

A CAT6a surface-mounted box is an ideal solution if you want to realize an internet connection in your living room, for example. The article is easy to attach to the wall by means of screw or adhesive mounting. A CAT6a surface-mounted box is suitable for networks up to 10Gbit with a bandwidth of no less than 500MHz. This article is also suitable for the use of PoE (Power over Ethernet). Suitable for cables with a rigid core AWG22-26.

• ISO / IEC 11801 and TIA / EIA 568C.2
• 1 RJ45 connection, fully shielded
• Easy installation by means of screw or adhesive mounting
• Color: RAL9010
• Suitable for round cables with a maximum outer diameter of 7.3mm

What is the difference between UTP, FTP and S/FTP?

The above terms indicate whether the cable has no, one or more shields. A UTP cable is not shielded and installation close to other cables can lead to malfunctions. FTP is simply a single shield, where S / FTP is double shielded and interference is virtually impossible. Not sure yet? You can always contact us! We are happy to advise you on which cable you may need.

What is PoE (Power over Ethernet)?

With Power over Ethernet it is possible to supply both data and power over a standard internet cable. It can be used to power equipment such as security cameras and VOIP phones. Power over Ethernet is especially useful for equipment that is far away from an electrical outlet, but requires power.
