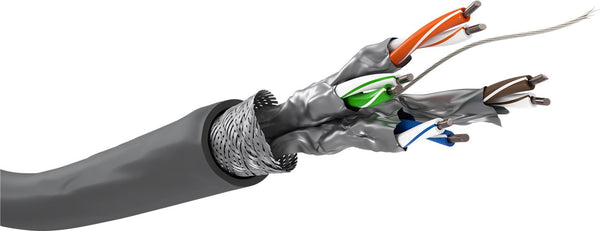

SFTP CAT6 network cable solid 305M

Item no.: 111548 4.0/5(1 reviews)

Connection cable length	305 M
Color	Grey
Inner conductor material	CCA
max. bandwidth	250 MHz
Screening per Pair	Aluminium Foil
Outer sheath	PVC
Category	Cat6
Diameter Ø	6.3 mm
Cable	4 Pair (4x2) AWG23
Overall Screening	Metal Braid
Type Cable	S/FTP
Connection	10/100/1000 Mbit (1 Gigabit)
Packaging unit	1 piece
Conductors	Solid
CPR Fire Class	Eca
Suitable for POE:
Conformity:
Diameter of insulated conductor:

Note : the most compatible connectors you can find HERE.

S / FTP CAT6 network cable solid 305M CCA. The cable has AWG value 23 with a PVC sheath. Suitable for networks up to 1Gbit with a bandwidth of 250MHz. Comes on reel without molded connectors, ideal when you have to pull the cable through empty pipes. A stiff cable is always used when working with wall sockets, patch panels or LSA strips in general.

What is the difference between UTP, FTP and S / FTP?

The above terms indicate whether the cable has no, one or more shields. A UTP cable is not shielded and installation near other cables can cause malfunctions. FTP is simply a single shield, where S / FTP is double shielded and malfunctions are virtually excluded. Not sure yet? You can always contact us! We are happy to advise you on which cable you may need.
