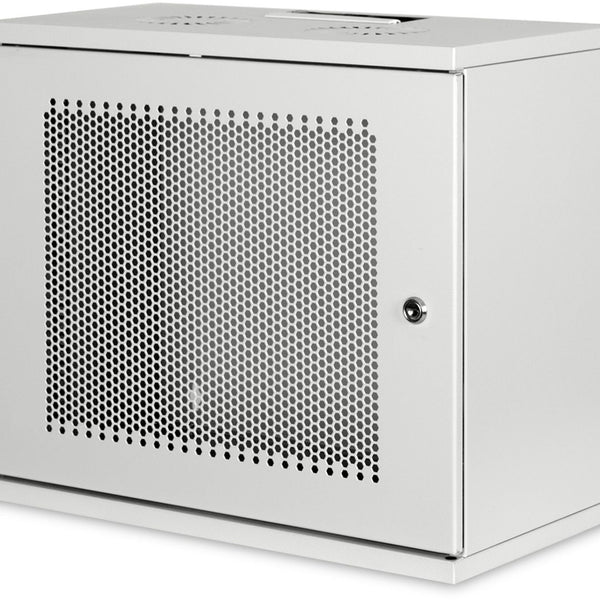

9U wall cabinet, SOHO, unassembled 460x540x400 mm, perforated front door, gray

Name: 9U wall cabinet, SOHO, unassembled 460x540x400 mm, perforated front door, gray
Brand: ASSMANN Electronic GmbH
SKU: DN-19-09U-S-PD
Price: 135.88 EUR
Availability: InStock

Item no.: DN-19-09U-S-PD

Technical details

Safety class IP20
Lockable perforated steel front door
200° door opening angle
1-point locking mechanism on the front door

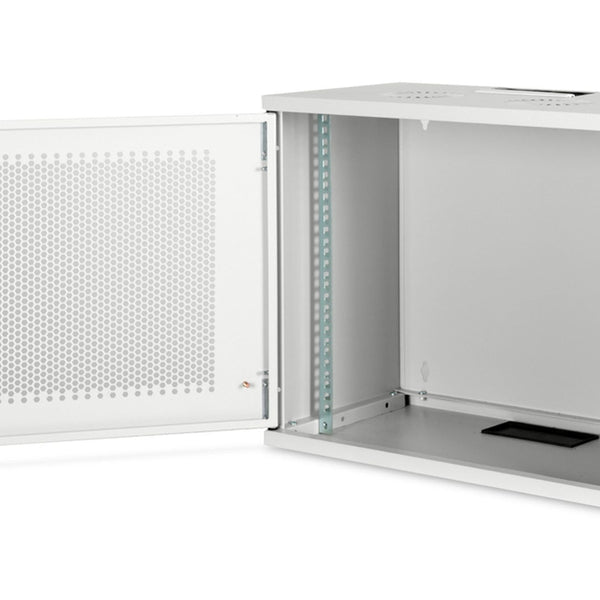

483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19”) profile rails are depth adjustable
1.1 - 1.5 strong sheet steel with a high load capacity, powder coated
Cable entry with brush strip at the top and with plastic cover at the bottom
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
Installation depth equipment min.-max.: 170-270 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 400 mm
Front door: Steel door, perforated, single opening
Load capacity: 60 kg
Side panels: Both sides
Units: 9
Width: 540mm
IP protection class: IP20
Mounted: no
