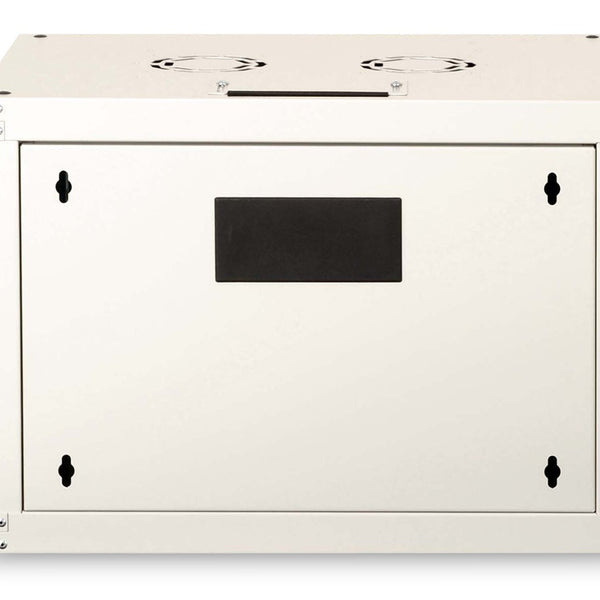

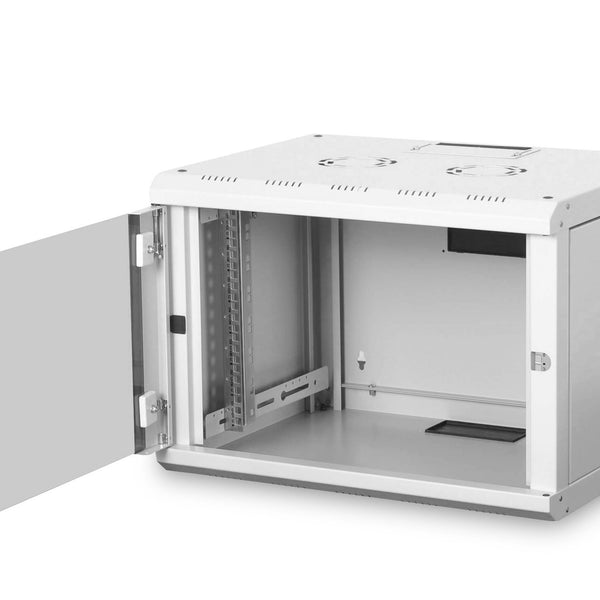

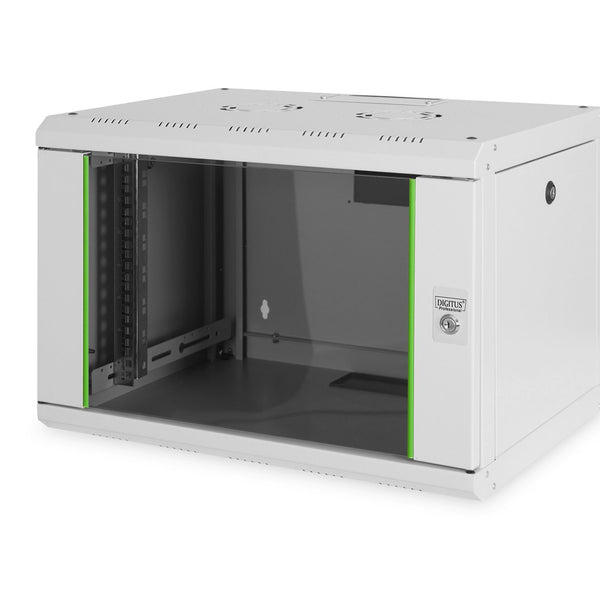

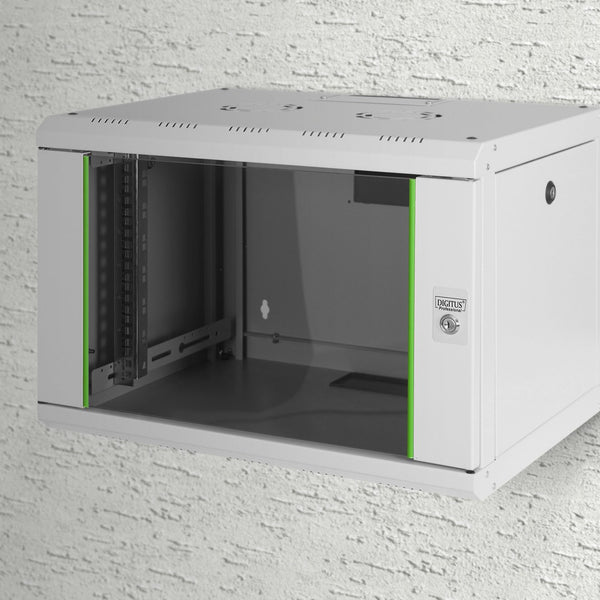

7U wall cabinet, Unique 600x450x420 mm, color light gray (RAL 7035)

Name: 7U wall cabinet, Unique 600x450x420 mm, color light gray (RAL 7035)
Brand: ASSMANN Electronic GmbH
SKU: DN-19-07-U
Price: 212.94 EUR
Availability: InStock

Item no.: DN-19-07-U

TECHNICAL DETAILS

Safety class IP20
Lockable safety glass door with steel frame
210° door opening angle
1-point locking mechanism on the front door
Side panels are lockable and removable
483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
Maximum installation depth: 370 mm
Cable entry at the rear and bottom with plastic cover and top with sliding cover
Roof is prepared for fan units (punched out entrances)
Ventilation slots for active and passive ventilation and extraction
Multiple grounding points for rack components
Incl. mounting kit (screws, cage nuts, washers)
Rack is fully assembled
Installation depth equipment min.-max.: 305-370 mm
Cabinet type: Wall mounted cabinet
Colour: light grey, RAL 7035
Depth: 450 mm
Front door: Glass door, single opening
Load capacity: 100 kg
Side panels: Both sides
Units: 7
Width: 600mm
IP protection class: IP20
Mounted: yes
