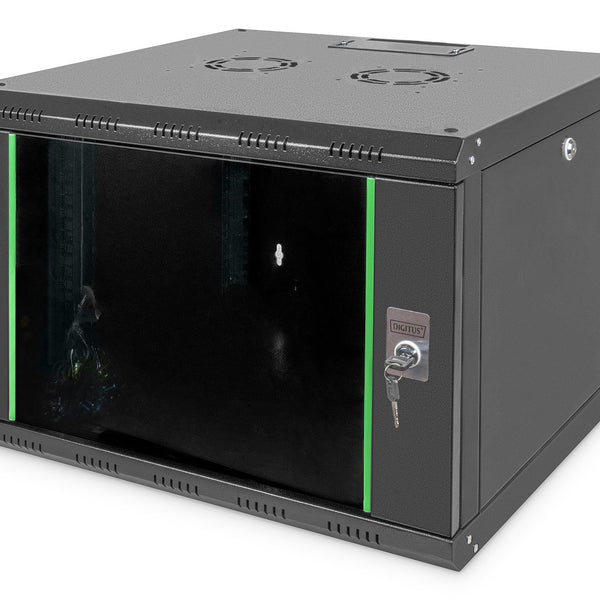

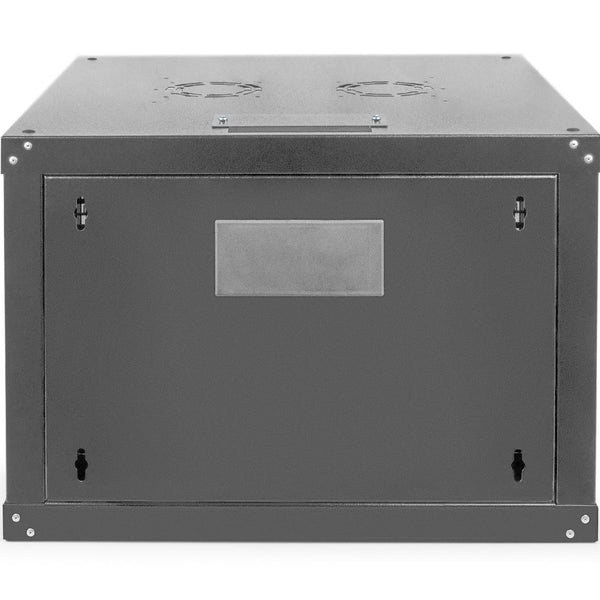

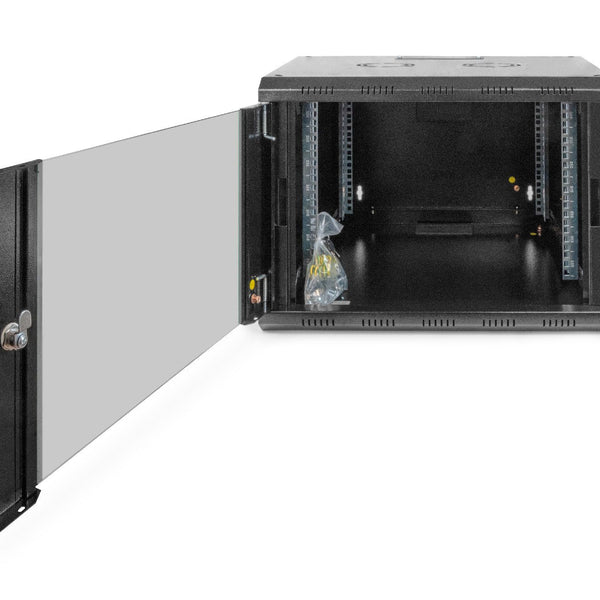

7U wall mounting cabinet, Unique 420x600x600 mm, color black (RAL 9005)
(€205,03 Incl. VAT)€169,45
✅ 100% Lowest Price Guarantee!
✅ Shipping from just €5.95
✅ Pay after 14 days
✅ 2-year warranty on your purchase
SKU: DN-19 07U-6/6-SW
Additional products
-
-
-
19 inch 2U shelf for racks from 450 mm depth 88.5x483x352 mm, up to 25 kg, black (RAL 9005)
(€33,64 Incl. VAT)€27,80
-
-
TECHNICAL DETAILS
- Safety class IP20
- Lockable safety glass door with steel frame
- 210° door opening angle
- 1-point locking mechanism on the front door
- Side panels are lockable and removable
- 483 mm (19") profile rails mounted at the front and rear inside the rack, galvanized
- 483 mm (19") profile rails are depth-adjustable and equipped with height unit markings
- Maximum installation depth: 450 mm
- Cable entry at the rear and bottom with plastic cover and top with sliding cover
- Roof is prepared for fan units (punched out entrances)
- Ventilation slots for active and passive ventilation and extraction
- Multiple grounding points for rack components
- Incl. mounting kit (screws, cage nuts, washers)
- Rack is fully assembled
- Installation depth equipment min.-max.: 320-450 mm
- Cabinet type: Wall mounted cabinet
- Colour: black, RAL 9005
- Depth: 600 mm
- Front door: Glass door, single opening
- Load capacity: 100 kg
- Side panels: Both sides
- Units: 7
- Width: 600mm
- IP protection class: IP20
- Mounted: yes
PACKAGE CONTENTS
- Ground wire set
- Mounting kit (screws, cage nuts, washers)
- 2 x keys
