19 inch cable holder with brush 1U
-
Product description

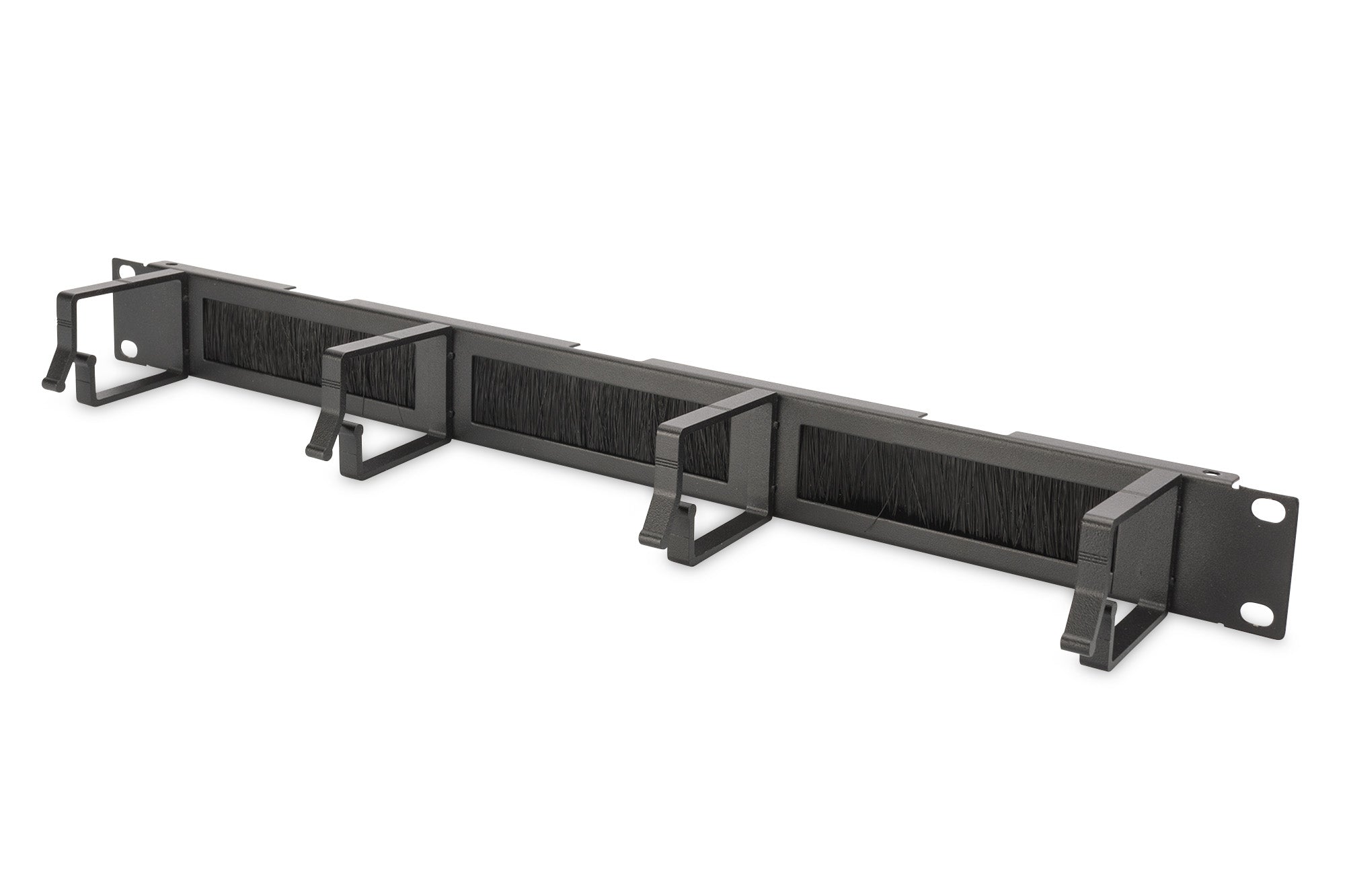

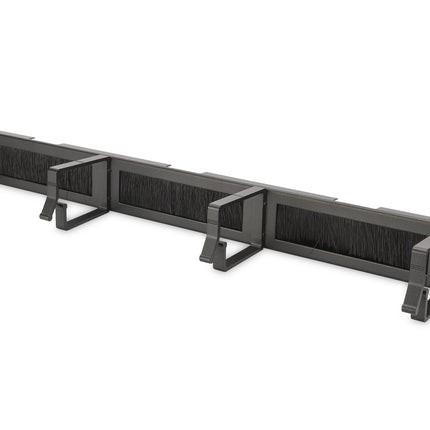

1U cable management panel with brush strip, 4x aluminum cable routing strips 44x60 mm, black RAL 9005
- Easy installation
- Optimal cable management options thanks to cable rings and additional feed-throughs with brush strips
Description

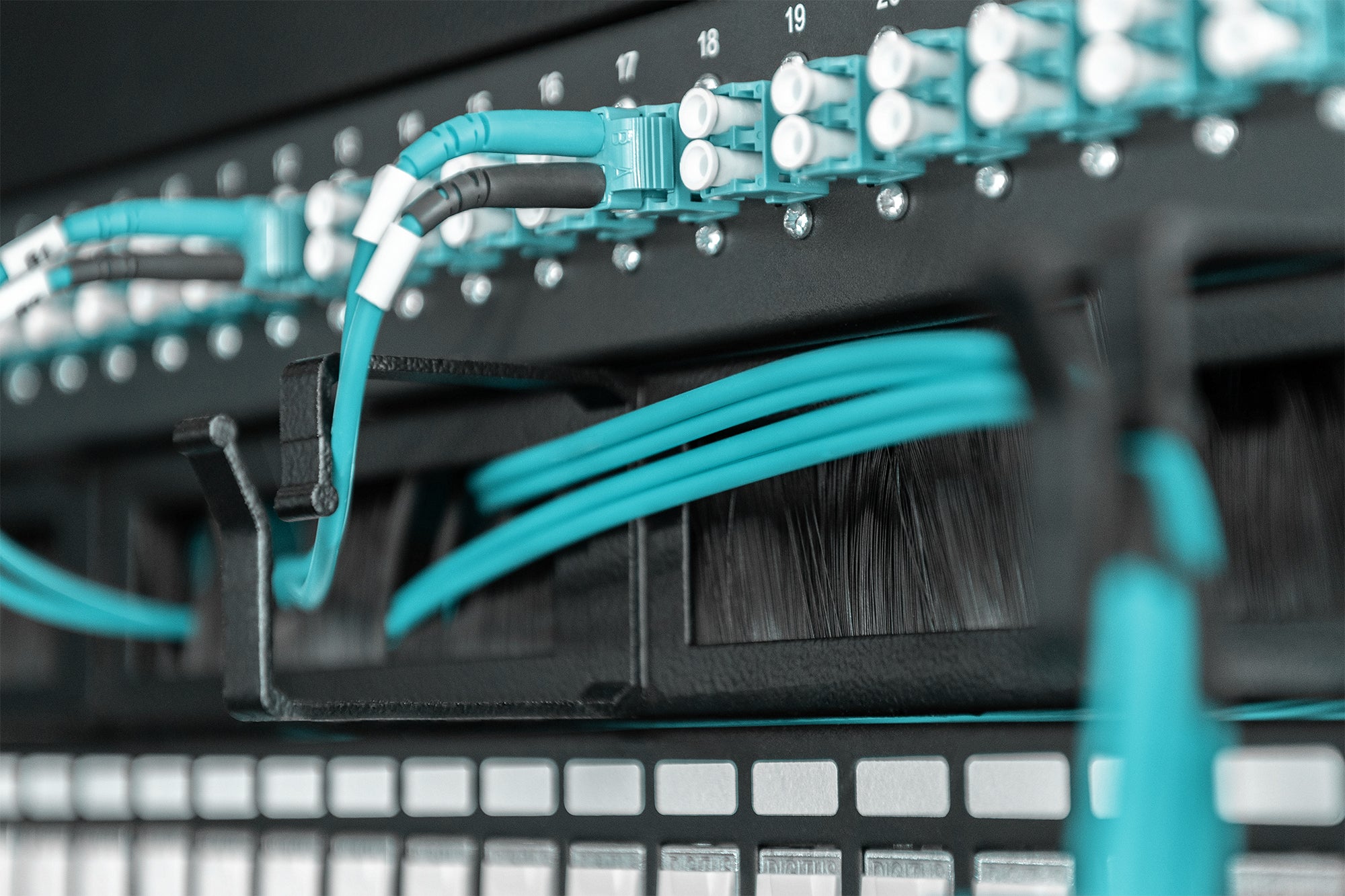

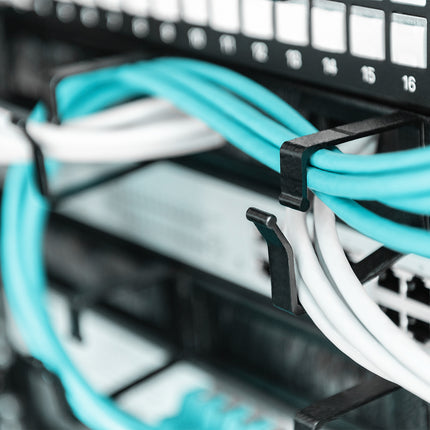

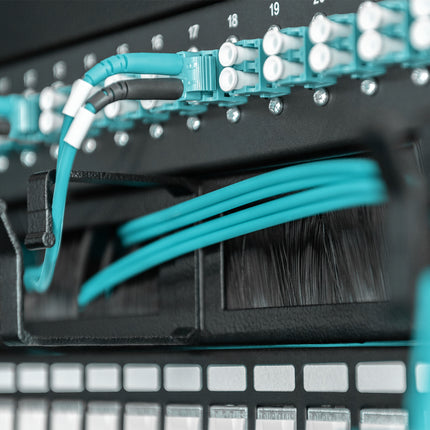

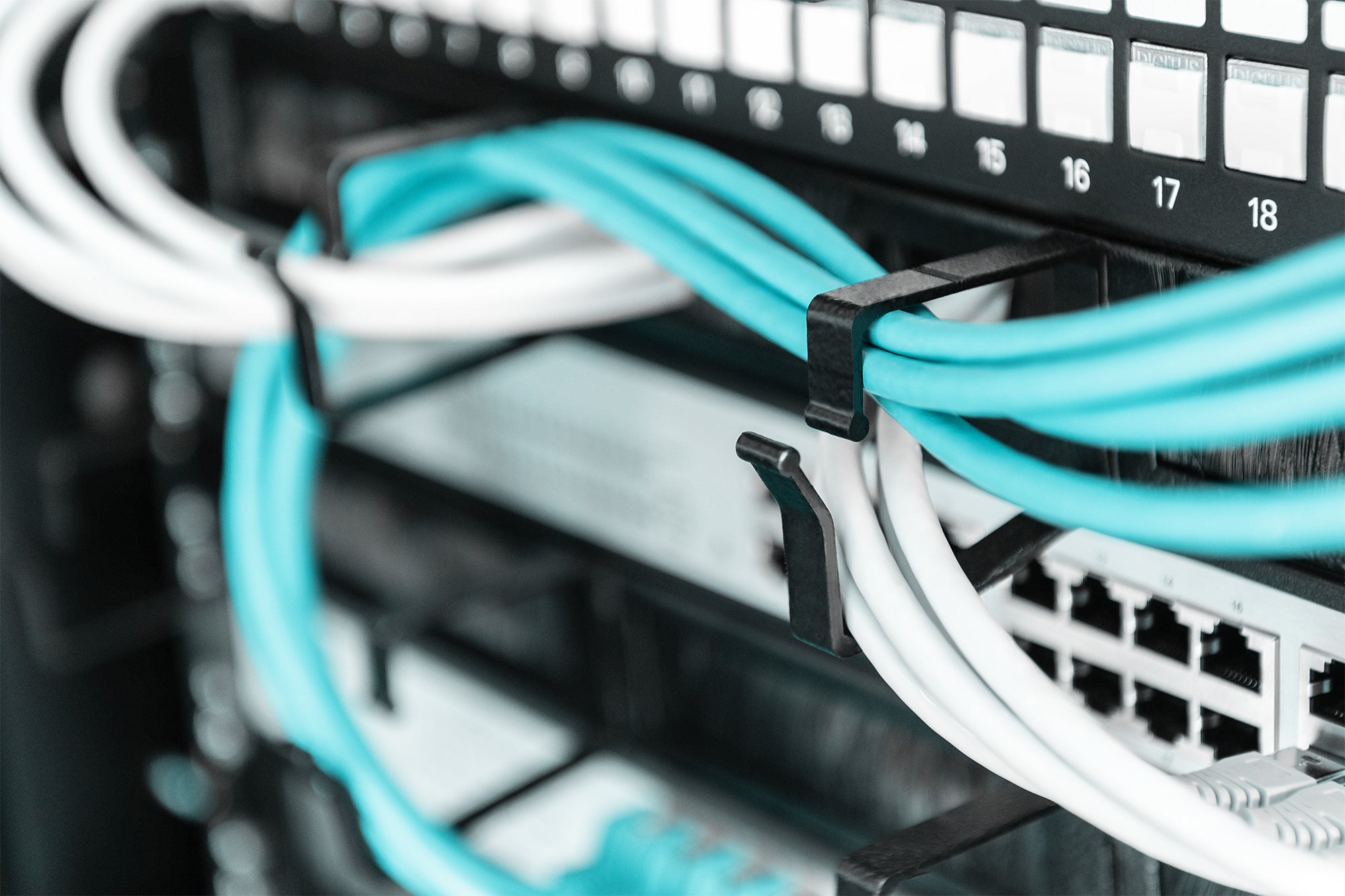

The cable management panels attach to the 483 mm (19") profile rails. Four cable routing brackets and three cable openings with brushes allow for easy horizontal maneuvering of patch cables. Optimal cable management in your 483 mm (19") network or server cabinet is guaranteed.
Technical details
- For mounting on 483 mm (19") profile rails
- Robust sheet steel
- 4x aluminum cable guide brackets (44x60 mm)
- 3x cable opening with brush (25x110 mm)
- incl. mounting material
Attributes
- Units: 1
- Color: black, RAL 9005
- Inch form factor (IEC 60297): 482.6 mm (19")
Package content
- Installation kit (screws, cage nuts, washers)
Logistics
| Number (pcs) |
Weight (kg) |
Depth (cm) |
Width (cm) |
Height (cm) |
cm³ | |
|---|---|---|---|---|---|---|
| Packaging unit cardboard | 60 | 21.00 | 59.50 | 50.00 | 46.60 | 138,635.00 |
| Packaging unit inside | 1 | 0.35 | 0.90 | 49.00 | 0.50 | 22.05 |
| Single packaging unit | 1 | 0.35 | 0.90 | 49.00 | 0.50 | 22.05 |
Customs tariff number : 7326909890
