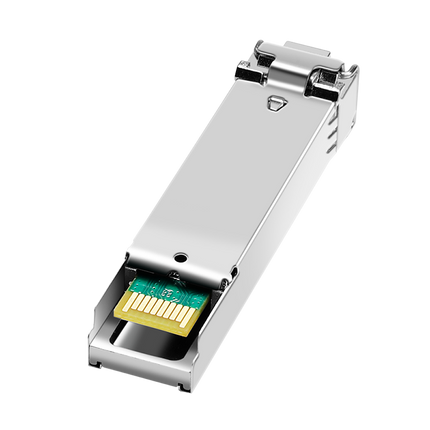

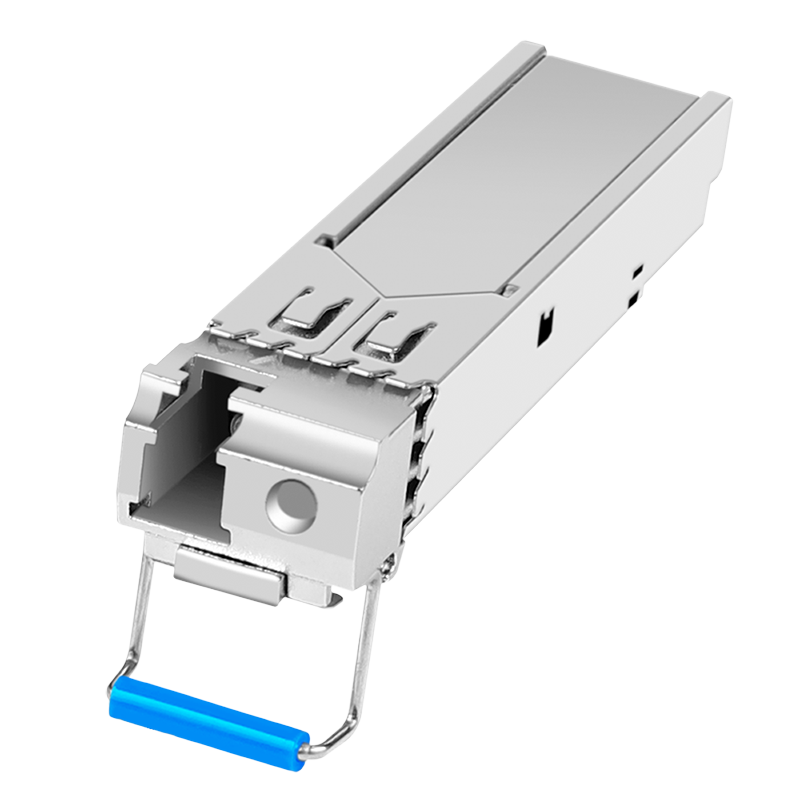

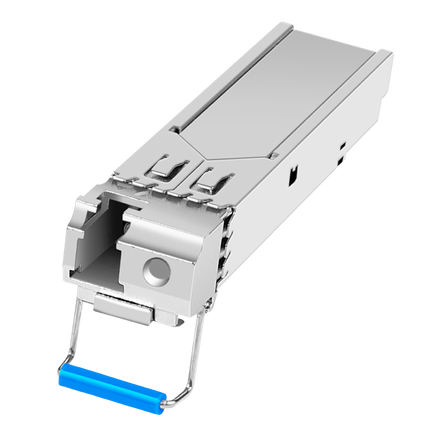

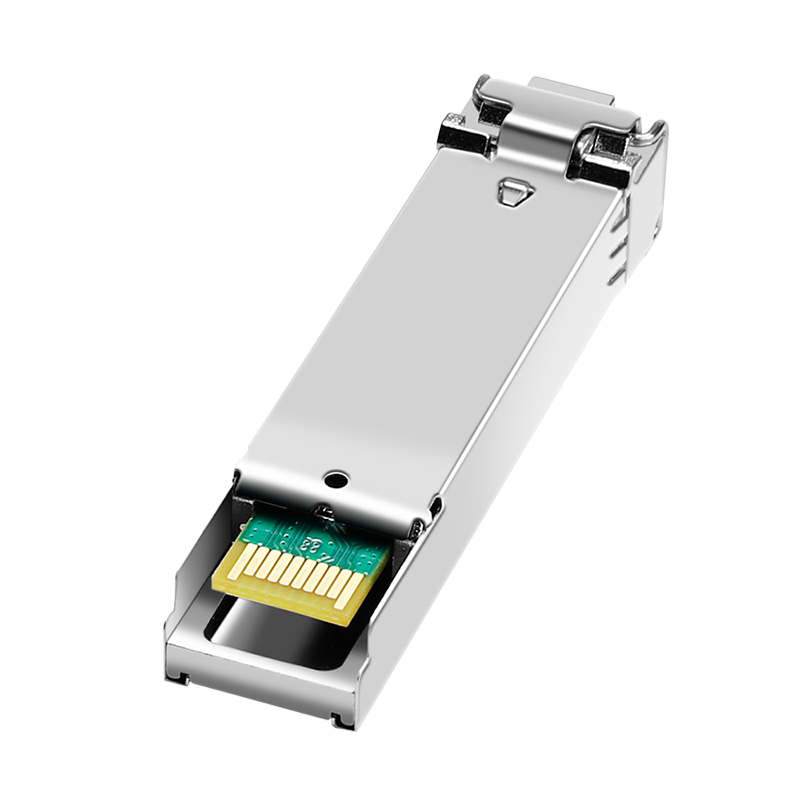

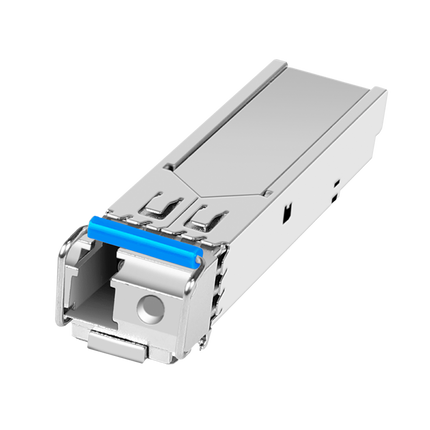

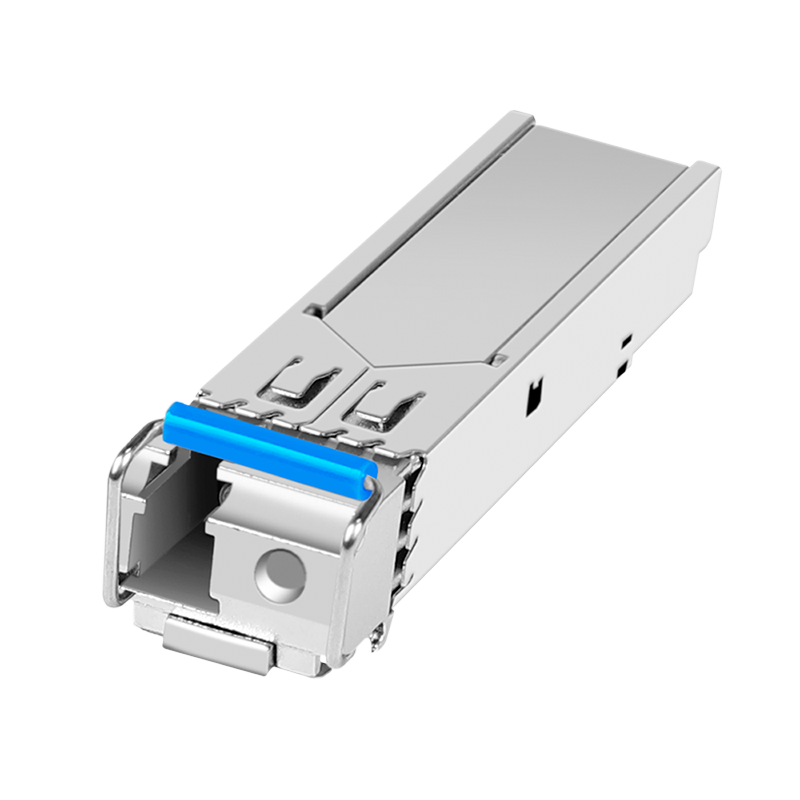

1.25 Gbit/s BiDi SFP Transceiver – 1000BASE-BX-U (20 km)

Name: 1.25 Gbit/s BiDi SFP Transceiver – 1000BASE-BX-U (20 km)
Brand: 2direct GmbH
SKU: DN-81003
Price: 22.14 EUR
Availability: InStock

22,14 Incl. VAT18,30 Excl. VAT

Delivered Tuesday

SKU: DN-81003

Need a larger quantity?

Request quote

✅ Ordered Monday to Friday before 9 PM = delivered tomorrow
✅ 15 years of expertise in network cables
✅ 250,000+ satisfied customers
✅ Pay up to 30 days later
✅ Shipping from €3.49
✅ 2-year warranty

Additional products

Gigabit media converter, RJ45/SFP
58,08 Incl. VAT48,00 Excl. VAT

Technical details

Mini GBIC SFP (Small Form Factor Pluggable) module
Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyX
Bidirectional WDM Module - Only one fiber is needed
High quality and excellent reliability
1.25 Gbps Maximum Data Rate
Compliant with IEEE 802.3z Gigabit Standard
Class 1 laser product compliant with EN 60825-1
Easy plug and play installation
MSA (Multi Source Agreement) compliant
Hot pluggable
Connector: 1x LC Simplex
Wavelength: Tx 1310nm / Rx 1550nm
Transmission Power: Minimum -5 dBm, Maximum 0 dBm
Sensitivity receiving power: minimum -24 dBm
For a distance of up to 20km
Suitable for 09/125µm Singlemode Fiber Cables
Safe fast-locking mechanism
3.3V power supply
Suitable Module for Opposite Side: DN-81004
Operating temperature: 0°C ~ 70°C
Mode: Singlemode
Connector: LC
Distance (km): 20
Wavelength: 1310/1550 nm
DDM Support: no
Broadcasting Mode: Bidirectional
Manufacturer compatibility: Universal (MSA), Cisco
Ethernet speed: Gigabit
