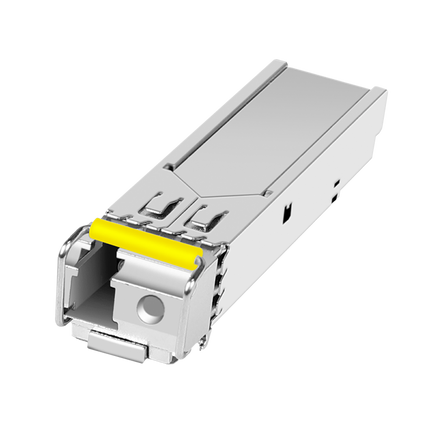

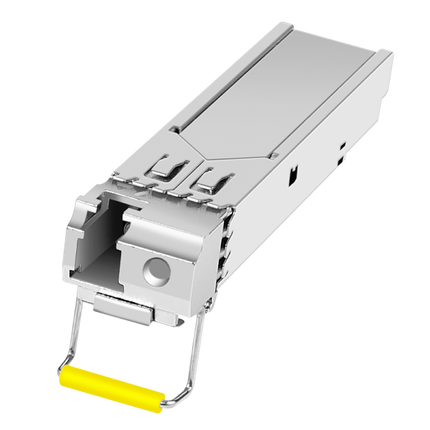

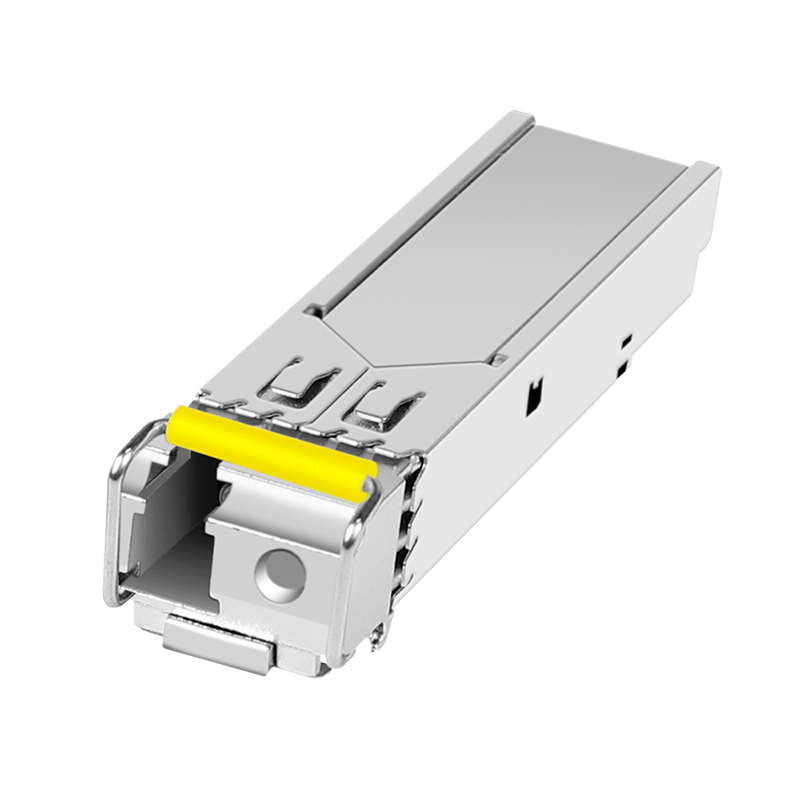

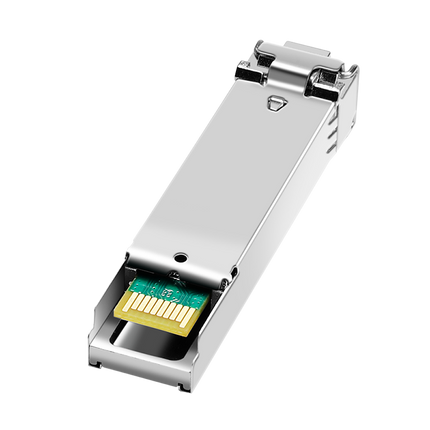

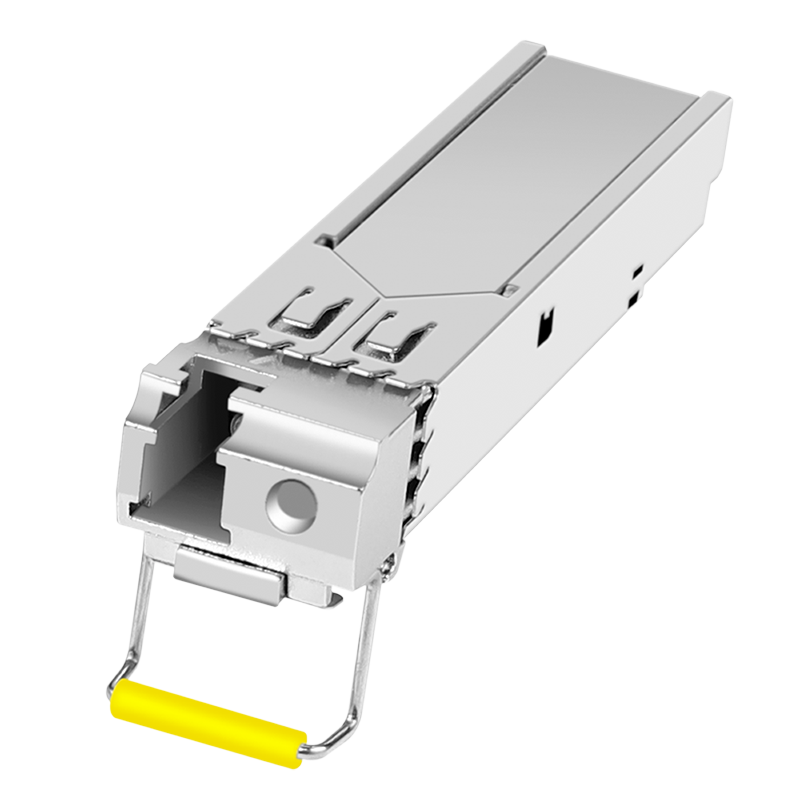

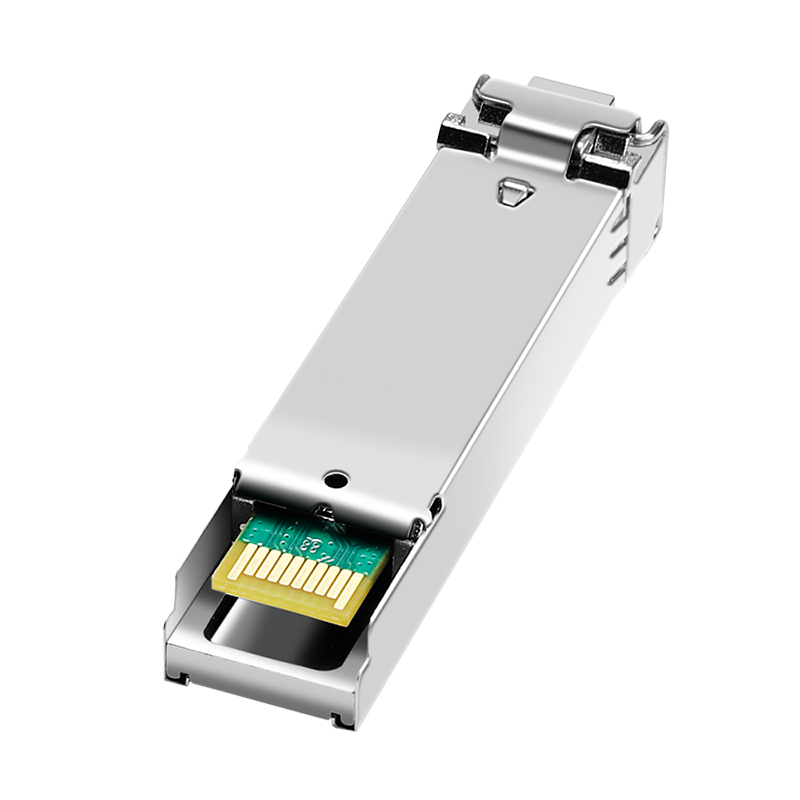

1.25 Gbit/s BiDi SFP Transceiver – 1000BASE-BX-D (20 km)

The Mini-GBIC (SFP) transceiver is known for its stability and broad applicability. This BiDi (Bi-directional) module enables efficient data transfer over a single single-mode fiber using WDM technology.

This specific module follows the 1000BASE-BX-D standard. It's designed to work with a BX-U module at the other end of the line. With a speed of 1.25 Gbit/s and a range of up to 20 kilometers, it's the ideal solution for cost-effective network expansion (as you need half the cabling). Naturally, the module is MSA-compliant and equipped with DDM for real-time status monitoring.

Key Features:

• Technology: Bi-directional (BiDi) – data over 1 fiber.

• Wavelength: TX 1550nm / RX 1310nm (Side D).

• Speed: 1.25 Gbit/s (1000BASE-BX-D).

• Connection: LC Simplex (for Single-mode fiber).

• Range: Up to 20 kilometers.

• Compatibility: MSA compliant (works with switches from various brands).

• Diagnosis: Supports DDM (Digital Diagnostics Monitoring).

• Installation: Hot-Pluggable & Plug-and-Play.

Technical Specifications:
